Super-class for editors performing object construction. More...
#include <TYObjectConstructionEditor.h>

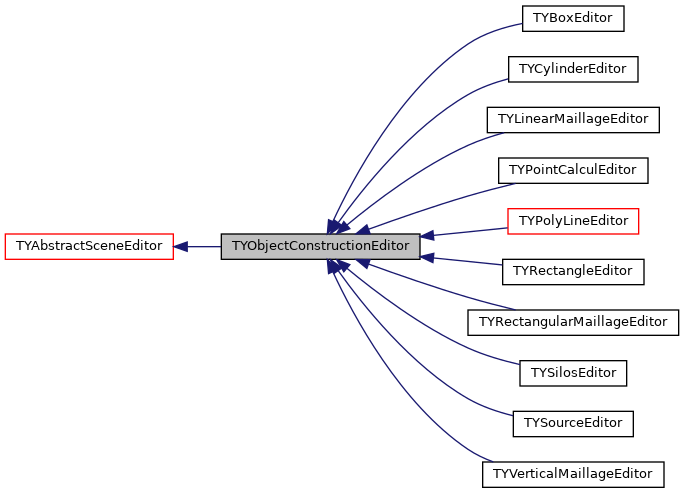

Inheritance diagram for TYObjectConstructionEditor:
Collaboration diagram for TYObjectConstructionEditor:
Public Slots | |
| virtual void | connect () |
| virtual void | disconnect () |
 Public Slots inherited from TYAbstractSceneEditor | |
| virtual void | connect () |
| Connecte cet editor a l'interactor associe. More... | |
| virtual void | disconnect () |
| Deconnecte cet editor a l'interactor associe. More... | |
| virtual void | init () |
| Appeler avant l'utilisation de l'editor. More... | |
| virtual void | cancel () |
| Annule l'action courante de l'editor. More... | |
| virtual void | close () |
| Appeler apres l'utilisation de l'editor. More... | |
| virtual void | slotMousePressed (int x, int y, Qt::MouseButton button, Qt::KeyboardModifiers state) |
| Une touche de la souris a ete enfoncee. More... | |
| virtual void | slotMouseReleased (int x, int y, Qt::MouseButton button, Qt::KeyboardModifiers state) |
| Une touche de la souris a ete relachee. More... | |
| virtual void | slotMouseDoubleClicked (int x, int y, Qt::MouseButton button, Qt::KeyboardModifiers state) |
| Une touche de la souris a ete double clickee. More... | |
| virtual void | slotMouseMoved (int x, int y, Qt::MouseButtons button, Qt::KeyboardModifiers state) |
| La souris a ete deplacee. More... | |
| virtual void | slotWheeled (int x, int y, int delta, Qt::KeyboardModifiers state) |
| La molette de la souris a ete utilisee. More... | |
| virtual void | slotKeyPressed (int key) |
| Une touche a ete relachee. More... | |
| virtual void | slotKeyReleased (int key) |
| Une touche a ete relachee. More... | |
| virtual void | slotViewTypeChanged (int view) |
| La vue courante du modeler a change. More... | |
| virtual void | slotMouseEnter () |
| Le curseur de souris est entree dans la widget. More... | |
| virtual void | slotMouseLeave () |
| Le curseur de souris est sortie dans la widget. More... | |
Public Member Functions | |
| TYObjectConstructionEditor (TYModelerFrame *pModeler) | |
| virtual | ~TYObjectConstructionEditor () |
| Public Member Functions inherited from TYAbstractSceneEditor | |
| virtual | ~TYAbstractSceneEditor () |
| Destructeur. More... | |
| void | updateText (QString msg="", int posX=0, int posY=0, bool show=true) |
| Mets a jour le texte informatif sur la vue 3D. More... | |
| void | showText (bool show=true) |
| Affiche ou pas le texte informatif sur la vue 3D. More... | |
| void | setGridMagnStep (float gridMagnStep=1.0) |
| Met à jour le pas de la grille magnétique. More... | |
| void | setWheelStep (float step=1.0) |
| Met à jour le pas de zoom de la caméra. More... | |
Additional Inherited Members | |
| Static Public Member Functions inherited from TYAbstractSceneEditor | |
| static void | snapToGrid (float &x, float &y, float &z, float &gridMagnStep) |
| Methode utilitaire qui adapte les coordonnees d'un point pour que celui-ci soit aligne avec la grille imaginaire de positionnement. More... | |
| static void | snapToGrid (double &x, double &y, double &z, double &gridMagnStep) |
| Methode utilitaire qui adapte les coordonnees d'un point pour que celui-ci soit aligne avec la grille imaginaire de positionnement. More... | |
| Protected Member Functions inherited from TYAbstractSceneEditor | |
| TYAbstractSceneEditor (TYModelerFrame *pModeler, TYCameraEditor *pCameraEditor=nullptr) | |
| Constructeur par defaut. More... | |
| void | displayToWorld (double x, double y, double z, double *worldPoint) |
| Methode utilitaire pour convertir un point en coordonnees ecran en coordonnees globale. More... | |
| void | worldToDisplay (double x, double y, double z, double *displayPoint) |
| Methode utilitaire pour convertir un point en coordonnees globale en coordonnees ecran. More... | |
| void | refreshSiteFrame () |
| Rafraichit l'arborescence du TYSiteFrame. More... | |
| void | refreshProjectFrame () |
| Rafraichit l'arborescence du TYProjectFrame. More... | |
| void | updateSiteFrame () |
| Reconstruit l'arborescence du TYSiteFrame. More... | |
| Protected Attributes inherited from TYAbstractSceneEditor | |
| TYModelerFrame * | _pModeler |
| Le modeler associe a cet editor. More... | |
| double | _gridMagnStep |
| Pas de la grille magnétique de positionnement. More... | |
| TYRenderWindowInteractor * | _pInteractor |
| La vue graphique associee a cet editor. More... | |
| OGLTextElement * | _pOGLTextElement |
| Affichage du texte 2D sur la vue 3D. More... | |
| TYCameraEditor * | _pCameraEditor |
| Le caméra editor associé à cet éditor. More... | |
Detailed Description
Super-class for editors performing object construction.
Definition at line 12 of file TYObjectConstructionEditor.h.
Constructor & Destructor Documentation
◆ TYObjectConstructionEditor()
| TYObjectConstructionEditor::TYObjectConstructionEditor | ( | TYModelerFrame * | pModeler | ) |
Definition at line 3 of file TYObjectConstructionEditor.cpp.

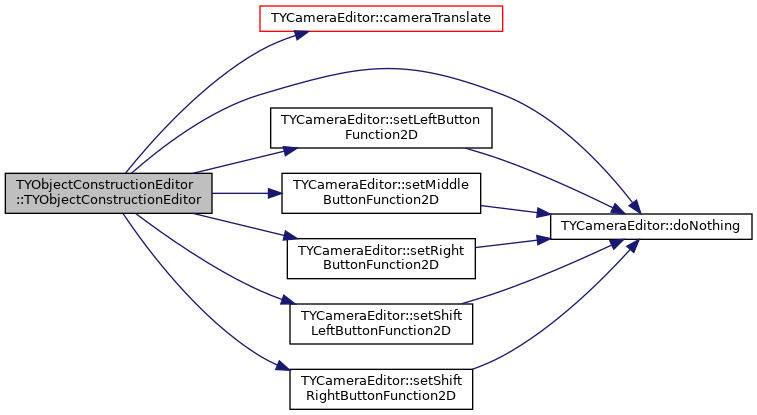

Here is the call graph for this function:
◆ ~TYObjectConstructionEditor()
|
virtual |
Definition at line 14 of file TYObjectConstructionEditor.cpp.
Member Function Documentation
◆ connect
|
virtualslot |
Definition at line 19 of file TYObjectConstructionEditor.cpp.
Here is the call graph for this function:
◆ disconnect
|
virtualslot |
Definition at line 25 of file TYObjectConstructionEditor.cpp.
Here is the call graph for this function:
The documentation for this class was generated from the following files:
- /home/docs/checkouts/readthedocs.org/user_builds/code-tympan/checkouts/issue_952/Tympan/gui/app/TYObjectConstructionEditor.h
- /home/docs/checkouts/readthedocs.org/user_builds/code-tympan/checkouts/issue_952/Tympan/gui/app/TYObjectConstructionEditor.cpp
