Representation of one of the most optimal path between source and receptor: S—>R. The class TYChemin represents a path between a Source and a receptor (Recepteur class). It's constituted of a collection of steps (TYEtape class). Specific derivation of TYChemin for 9613Solver version 2024. More...
#include <TYChemin9613Solver2024.h>
Inheritance diagram for TYChemin9613Solver2024:
Collaboration diagram for TYChemin9613Solver2024:
Protected Member Functions | |
| OSpectreOctave | calcTotalGroundAttenuation (const OSpectreOctave &Agr_s, const OSpectreOctave &Agr_r, const OSpectreOctave &Agr_m, double hs, double hr, double dp) const override |
| Compute total ground attenuation Agr from region ground attenuations and geometric configuration. More... | |
| OSpectreOctave | calcMinimalExtensionConditionOneReflection (const OPoint3D &S, const OPoint3D &O, const OPoint3D &R, double a, double h, const OVector3D &n) const override |
| Evaluate minimal extension condition for a specular reflection on a flat surface in function of the wavelength. More... | |
Additional Inherited Members | |
 Public Member Functions inherited from TYChemin9613Solver | |
| TYChemin9613Solver () | |
| Constructor. More... | |
| TYChemin9613Solver (const TYChemin9613Solver &other) | |
| Copy contructor. More... | |
| ~TYChemin9613Solver () override | |
| Destructor. More... | |
| TYChemin9613Solver & | operator= (const TYChemin9613Solver &other) |
| Operator =. More... | |
| bool | operator== (const TYChemin9613Solver &other) const |
| Operator ==. More... | |
| bool | operator!= (const TYChemin9613Solver &other) const |
| Operator !=. More... | |
| void | calcAttenuation (const TYTabEtape9613Solver &tabEtapes, const AtmosphericConditions &atmos, double dp=0.0, double hs=0.0, double hr=0.0, double Gs=0.5, double Gm=0.5, double Gr=0.5) |
| Compute the global attenuation on the path. More... | |
| void | calcMinimalExtensionCondition (const OPoint3D &S, const OPoint3D &O, const OPoint3D &R, double a, double h, const OVector3D &n) |
| Evaluate minimal extension condition for specular reflections on flat surfaces in function of the wavelength The result is stored as an attenuation of type REFLEXION_MIN_EXT_COND. It is the responsibility of the user to ensure that reflections occur over flat surfaces. NOTE: restricted to 1st order reflections only. More... | |
| void | computeBarAttenuation (const OSpectreOctave &Dz, const bool vertical, const bool left) |
| Compute barrier attenuation on the path. It implements recommendation 5.5 of 17534-3 standard, or equivalently Eq. 16-17 of 9613-2:2024 standard. In addition to the parameters, the result is function of the attenuation of type ATTENUATION_GND_TOTAL. The result is stored as an attenuation of type ATTENUATION_BAR_TOP, or ATTENUATION_BAR_LEFT, or ATTENUATION_BAR_RIGHT. More... | |
| OSpectreOctave & | getAttenuation (const TYTypeAttenuation type) |
| Return attenuation of the path of the type. More... | |
| void | setAttenuation (const TYTypeAttenuation &type, const OSpectreOctave &att) |
| Set the atmospheric attenuation. More... | |
| void | setAttenuationBarWhenNoPath (bool vertical, bool left) |
| Set attenuation bar to max to traduce the lack of diffracted ray on this path. More... | |
| Public Member Functions inherited from TYChemin | |
| TYChemin () | |
| Constructor. More... | |
| TYChemin (const TYChemin &other) | |
| Copy contructor. More... | |
| virtual | ~TYChemin () |
| Destructor. More... | |
| TYChemin & | operator= (const TYChemin &other) |
| Operator =. More... | |
| bool | operator== (const TYChemin &other) const |
| Operator ==. More... | |
| bool | operator!= (const TYChemin &other) const |
| Operator !=. More... | |
| double | getLongueur () |
| Get/Set the path length. More... | |
| const double | getLongueur () const |
| void | setLongueur (const double &longueur) |
| double | getDistance () |
| Get/Set the distance between source and receptor. More... | |
| const double | getDistance () const |
| void | setDistance (const double &distance) |
| void | setType (const TYTypeChemin &type) |
| Change the path type. More... | |
| const TYTypeChemin | getType () const |
| Return the path type. More... | |
| template<typename T > | |
| void | build_eq_path (const T &tabEtapes) |
| build an acoustic_path from the tab of etapes More... | |
| acoustic_path * | get_ray (OPoint3D ptR) |
| Protected Attributes inherited from TYChemin9613Solver | |
| std::map< TYTypeAttenuation, OSpectreOctave > | _attenuations |
| Attenuations spectra of the path. More... | |
| Protected Attributes inherited from TYChemin | |
| TYTypeChemin | _typeChemin |
| Path type (has an influence on the algorithm) More... | |
| double | _longueur |
| Total path length. More... | |
| double | _distance |
| Direct distance between source and receptor. More... | |
| acoustic_path * | _eq_path |
| Equivalent acoustic_path. More... | |
Detailed Description
Representation of one of the most optimal path between source and receptor: S—>R. The class TYChemin represents a path between a Source and a receptor (Recepteur class). It's constituted of a collection of steps (TYEtape class). Specific derivation of TYChemin for 9613Solver version 2024.
Definition at line 36 of file TYChemin9613Solver2024.h.
Member Function Documentation
◆ calcMinimalExtensionConditionOneReflection()
|
overrideprotectedvirtual |
Evaluate minimal extension condition for a specular reflection on a flat surface in function of the wavelength.
- Parameters
-
S the source point O the reflection point on the flat surface R the receptor point a the horizontal extension of the surface (in meters) h the vertical extension of the surface (in meters) n normal of the surface (assumed to have a non-zero horizontal component)
- Returns
- a spectrum whose components are 1 (reflection occurs) or 0 (the wave passes through the surface)
Reimplemented from TYChemin9613Solver.
Definition at line 34 of file TYChemin9613Solver2024.cpp.

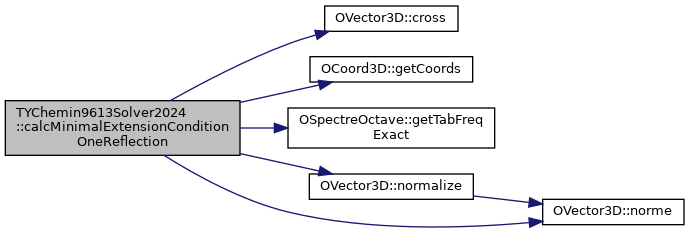

Here is the call graph for this function:
◆ calcTotalGroundAttenuation()
|
overrideprotectedvirtual |
Compute total ground attenuation Agr from region ground attenuations and geometric configuration.
- Parameters
-
Agr_s Ground attenuation spectrum in the "source region" in octave band Agr_r Ground attenuation spectrum in the "receiver region" in octave band Agr_m Ground attenuation spectrum in the "middle region" in octave band hs Height from ground of the source in meters hr Height from ground of the receiver in meters dp Distance between source and receiver projected on an horizontal plane in meters
- Returns
- Total ground attenuation spectrum Agr
Reimplemented from TYChemin9613Solver.
Definition at line 18 of file TYChemin9613Solver2024.cpp.
Here is the call graph for this function:
The documentation for this class was generated from the following files:
- /home/docs/checkouts/readthedocs.org/user_builds/code-tympan/checkouts/issue_952/Tympan/solvers/9613/9613Solver2024/TYChemin9613Solver2024.h
- /home/docs/checkouts/readthedocs.org/user_builds/code-tympan/checkouts/issue_952/Tympan/solvers/9613/9613Solver2024/TYChemin9613Solver2024.cpp
