Representation of one of the most optimal path between source and receptor: S—>R. The class TYChemin represents a path between a Source and a receptor (Recepteur class). It's constituted of a collection of steps (TYEtape class). Specific derivation of TYChemin for 9613Solver. More...

#include <TYChemin9613Solver.h>

Inheritance diagram for TYChemin9613Solver:

[legend]

Collaboration diagram for TYChemin9613Solver:

[legend]

Public Member Functions
	TYChemin9613Solver ()
	Constructor. More...

	TYChemin9613Solver (const TYChemin9613Solver &other)
	Copy contructor. More...

	~TYChemin9613Solver () override
	Destructor. More...

TYChemin9613Solver &	operator= (const TYChemin9613Solver &other)
	Operator =. More...

bool	operator== (const TYChemin9613Solver &other) const
	Operator ==. More...

bool	operator!= (const TYChemin9613Solver &other) const
	Operator !=. More...

void	calcAttenuation (const TYTabEtape9613Solver &tabEtapes, const AtmosphericConditions &atmos, double dp=0.0, double hs=0.0, double hr=0.0, double Gs=0.5, double Gm=0.5, double Gr=0.5)
	Compute the global attenuation on the path. More...

void	calcMinimalExtensionCondition (const OPoint3D &S, const OPoint3D &O, const OPoint3D &R, double a, double h, const OVector3D &n)
	Evaluate minimal extension condition for specular reflections on flat surfaces in function of the wavelength The result is stored as an attenuation of type REFLEXION_MIN_EXT_COND. It is the responsibility of the user to ensure that reflections occur over flat surfaces. NOTE: restricted to 1st order reflections only. More...

void	computeBarAttenuation (const OSpectreOctave &Dz, const bool vertical, const bool left)
	Compute barrier attenuation on the path. It implements recommendation 5.5 of 17534-3 standard, or equivalently Eq. 16-17 of 9613-2:2024 standard. In addition to the parameters, the result is function of the attenuation of type ATTENUATION_GND_TOTAL. The result is stored as an attenuation of type ATTENUATION_BAR_TOP, or ATTENUATION_BAR_LEFT, or ATTENUATION_BAR_RIGHT. More...

OSpectreOctave &	getAttenuation (const TYTypeAttenuation type)
	Return attenuation of the path of the type. More...

void	setAttenuation (const TYTypeAttenuation &type, const OSpectreOctave &att)
	Set the atmospheric attenuation. More...

void	setAttenuationBarWhenNoPath (bool vertical, bool left)
	Set attenuation bar to max to traduce the lack of diffracted ray on this path. More...

Public Member Functions inherited from TYChemin
	TYChemin ()
	Constructor. More...

	TYChemin (const TYChemin &other)
	Copy contructor. More...

virtual	~TYChemin ()
	Destructor. More...

TYChemin &	operator= (const TYChemin &other)
	Operator =. More...

bool	operator== (const TYChemin &other) const
	Operator ==. More...

bool	operator!= (const TYChemin &other) const
	Operator !=. More...

double	getLongueur ()
	Get/Set the path length. More...

const double	getLongueur () const

void	setLongueur (const double &longueur)

double	getDistance ()
	Get/Set the distance between source and receptor. More...

const double	getDistance () const

void	setDistance (const double &distance)

void	setType (const TYTypeChemin &type)
	Change the path type. More...

const TYTypeChemin	getType () const
	Return the path type. More...

template<typename T >
void	build_eq_path (const T &tabEtapes)
	build an acoustic_path from the tab of etapes More...

acoustic_path *	get_ray (OPoint3D ptR)

Protected Member Functions
virtual OSpectreOctave	calcTotalGroundAttenuation (const OSpectreOctave &Agr_s, const OSpectreOctave &Agr_r, const OSpectreOctave &Agr_m, double hs, double hr, double dp) const
	Compute total ground attenuation Agr from region ground attenuations and geometric configuration. More...

virtual OSpectreOctave	calcMinimalExtensionConditionOneReflection (const OPoint3D &S, const OPoint3D &O, const OPoint3D &R, double a, double h, const OVector3D &n) const
	Evaluate minimal extension condition for a specular reflection on a flat surface in function of the wavelength. More...

Protected Attributes
std::map< TYTypeAttenuation, OSpectreOctave >	_attenuations
	Attenuations spectra of the path. More...

Protected Attributes inherited from TYChemin
TYTypeChemin	_typeChemin
	Path type (has an influence on the algorithm) More...

double	_longueur
	Total path length. More...

double	_distance
	Direct distance between source and receptor. More...

acoustic_path *	_eq_path
	Equivalent acoustic_path. More...

Private Member Functions
void	calcGroundAttenuations (double distance, double hs, double hr, double Gs, double Gm, double Gr)

OSpectreOctave	calcGroundAttenuationSR (double dp, double h, double G)

OSpectreOctave	calcGroundAttenuationM (double q, double Gm)

Detailed Description

Representation of one of the most optimal path between source and receptor: S—>R. The class TYChemin represents a path between a Source and a receptor (Recepteur class). It's constituted of a collection of steps (TYEtape class). Specific derivation of TYChemin for 9613Solver.

Definition at line 40 of file TYChemin9613Solver.h.

Constructor & Destructor Documentation

◆ TYChemin9613Solver() [1/2]

TYChemin9613Solver::TYChemin9613Solver ( )

Constructor.

Definition at line 19 of file TYChemin9613Solver.cpp.

◆ TYChemin9613Solver() [2/2]

TYChemin9613Solver::TYChemin9613Solver ( const TYChemin9613Solver & other )

Copy contructor.

Definition at line 24 of file TYChemin9613Solver.cpp.

◆ ~TYChemin9613Solver()

TYChemin9613Solver::~TYChemin9613Solver ( )

override

Destructor.

Definition at line 29 of file TYChemin9613Solver.cpp.

Member Function Documentation

◆ calcAttenuation()

void TYChemin9613Solver::calcAttenuation	(	const TYTabEtape9613Solver &	tabEtapes,
		const AtmosphericConditions &	atmos,
		double	dp = `0.0`,
		double	hs = `0.0`,
		double	hr = `0.0`,
		double	Gs = `0.5`,
		double	Gm = `0.5`,
		double	Gr = `0.5`
	)

Compute the global attenuation on the path.

Parameters

[in]	tabEtapes	Array of steps.
[in]	atmos	Atmospheric ocnditions.
[in]	dp	Distance 2D between source and receptor for considered path.
[in]	hs	Height of source.
[in]	hr	Height of receptor
[in]	Gs	Ground factor of the source zone.
[in]	Gm	Ground factor of the middle zone.
[in]	Gr	Ground factor of the receptor zone.

Definition at line 67 of file TYChemin9613Solver.cpp.

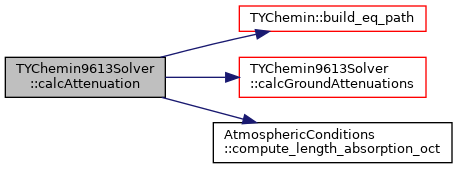

Here is the call graph for this function:

◆ calcGroundAttenuationM()

OSpectreOctave TYChemin9613Solver::calcGroundAttenuationM	(	double	q,
		double	Gm
	)

private

Definition at line 211 of file TYChemin9613Solver.cpp.

Here is the caller graph for this function:

◆ calcGroundAttenuations()

void TYChemin9613Solver::calcGroundAttenuations	(	double	distance,
		double	hs,
		double	hr,
		double	Gs,
		double	Gm,
		double	Gr
	)

private

Definition at line 175 of file TYChemin9613Solver.cpp.

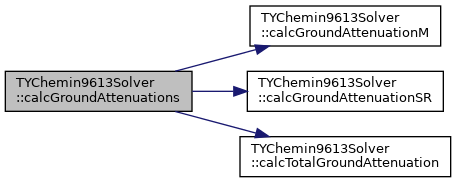

Here is the call graph for this function:

Here is the caller graph for this function:

◆ calcGroundAttenuationSR()

OSpectreOctave TYChemin9613Solver::calcGroundAttenuationSR	(	double	dp,
		double	h,
		double	G
	)

private

Definition at line 198 of file TYChemin9613Solver.cpp.

Here is the caller graph for this function:

◆ calcMinimalExtensionCondition()

void TYChemin9613Solver::calcMinimalExtensionCondition	(	const OPoint3D &	S,
		const OPoint3D &	O,
		const OPoint3D &	R,
		double	a,
		double	h,
		const OVector3D &	n
	)

Evaluate minimal extension condition for specular reflections on flat surfaces in function of the wavelength The result is stored as an attenuation of type REFLEXION_MIN_EXT_COND. It is the responsibility of the user to ensure that reflections occur over flat surfaces. NOTE: restricted to 1st order reflections only.

Parameters

S	the source point
O	the reflection point on the flat surface
R	the receptor point
a	the horizontal extension of the surface (in meters)
h	the vertical extension of the surface (in meters)
n	normal of the surface (assumed to have a non-zero horizontal component)

Definition at line 107 of file TYChemin9613Solver.cpp.

Here is the call graph for this function:

◆ calcMinimalExtensionConditionOneReflection()

OSpectreOctave TYChemin9613Solver::calcMinimalExtensionConditionOneReflection	(	const OPoint3D &	S,
		const OPoint3D &	O,
		const OPoint3D &	R,
		double	a,
		double	h,
		const OVector3D &	n
	)		const

protectedvirtual

Evaluate minimal extension condition for a specular reflection on a flat surface in function of the wavelength.

Parameters

S	the source point
O	the reflection point on the flat surface
R	the receptor point
a	the horizontal extension of the surface (in meters)
h	the vertical extension of the surface (in meters)
n	normal of the surface (assumed to have a non-zero horizontal component)

Returns: a spectrum whose components are 1 (reflection occurs) or 0 (the wave passes through the surface)

Reimplemented in TYChemin9613Solver2024.

Definition at line 232 of file TYChemin9613Solver.cpp.

Here is the caller graph for this function:

◆ calcTotalGroundAttenuation()

OSpectreOctave TYChemin9613Solver::calcTotalGroundAttenuation	(	const OSpectreOctave &	Agr_s,
		const OSpectreOctave &	Agr_r,
		const OSpectreOctave &	Agr_m,
		double	hs,
		double	hr,
		double	dp
	)		const

protectedvirtual

Compute total ground attenuation Agr from region ground attenuations and geometric configuration.

Parameters

Agr_s	Ground attenuation spectrum in the "source region" in octave band
Agr_r	Ground attenuation spectrum in the "receiver region" in octave band
Agr_m	Ground attenuation spectrum in the "middle region" in octave band
hs	Height from ground of the source in meters
hr	Height from ground of the receiver in meters
dp	Distance between source and receiver projected on an horizontal plane in meters

Returns: Total ground attenuation spectrum Agr

Reimplemented in TYChemin9613Solver2024.

Definition at line 224 of file TYChemin9613Solver.cpp.

Here is the caller graph for this function:

◆ computeBarAttenuation()

void TYChemin9613Solver::computeBarAttenuation	(	const OSpectreOctave &	Dz,
		const bool	vertical,
		const bool	left
	)

Compute barrier attenuation on the path. It implements recommendation 5.5 of 17534-3 standard, or equivalently Eq. 16-17 of 9613-2:2024 standard. In addition to the parameters, the result is function of the attenuation of type ATTENUATION_GND_TOTAL. The result is stored as an attenuation of type ATTENUATION_BAR_TOP, or ATTENUATION_BAR_LEFT, or ATTENUATION_BAR_RIGHT.

Parameters

Dz	the spectrum of barrier attenuation
vertical	true if the path is a top diffraction, false if the path is a lateral diffraction
left	in case of lateral diffraction, true if the path is a left diffraction, false if the path is a right diffraction

Definition at line 116 of file TYChemin9613Solver.cpp.

◆ getAttenuation()

OSpectreOctave & TYChemin9613Solver::getAttenuation ( const TYTypeAttenuation type )

Return attenuation of the path of the type.

Returns: _attenuations[type]

Definition at line 151 of file TYChemin9613Solver.cpp.

Here is the caller graph for this function:

◆ operator!=()

bool TYChemin9613Solver::operator!= ( const TYChemin9613Solver & other ) const

Operator !=.

Definition at line 62 of file TYChemin9613Solver.cpp.

Here is the call graph for this function:

◆ operator=()

TYChemin9613Solver & TYChemin9613Solver::operator= ( const TYChemin9613Solver & other )

Operator =.

Definition at line 34 of file TYChemin9613Solver.cpp.

Here is the call graph for this function:

◆ operator==()

bool TYChemin9613Solver::operator== ( const TYChemin9613Solver & other ) const

Operator ==.

Definition at line 45 of file TYChemin9613Solver.cpp.

Here is the caller graph for this function:

◆ setAttenuation()

void TYChemin9613Solver::setAttenuation	(	const TYTypeAttenuation &	type,
		const OSpectreOctave &	att
	)

inline

Set the atmospheric attenuation.

Definition at line 125 of file TYChemin9613Solver.h.

◆ setAttenuationBarWhenNoPath()

void TYChemin9613Solver::setAttenuationBarWhenNoPath	(	bool	vertical,
		bool	left
	)

Set attenuation bar to max to traduce the lack of diffracted ray on this path.

Definition at line 156 of file TYChemin9613Solver.cpp.

Member Data Documentation

◆ _attenuations

std::map<TYTypeAttenuation, OSpectreOctave> TYChemin9613Solver::_attenuations

protected

Attenuations spectra of the path.

Definition at line 173 of file TYChemin9613Solver.h.

The documentation for this class was generated from the following files:

/home/docs/checkouts/readthedocs.org/user_builds/code-tympan/checkouts/issue_952/Tympan/solvers/9613/9613Solver/TYChemin9613Solver.h
/home/docs/checkouts/readthedocs.org/user_builds/code-tympan/checkouts/issue_952/Tympan/solvers/9613/9613Solver/TYChemin9613Solver.cpp
