classe graphique pour un element de base More...

#include <TYElementGraphic.h>

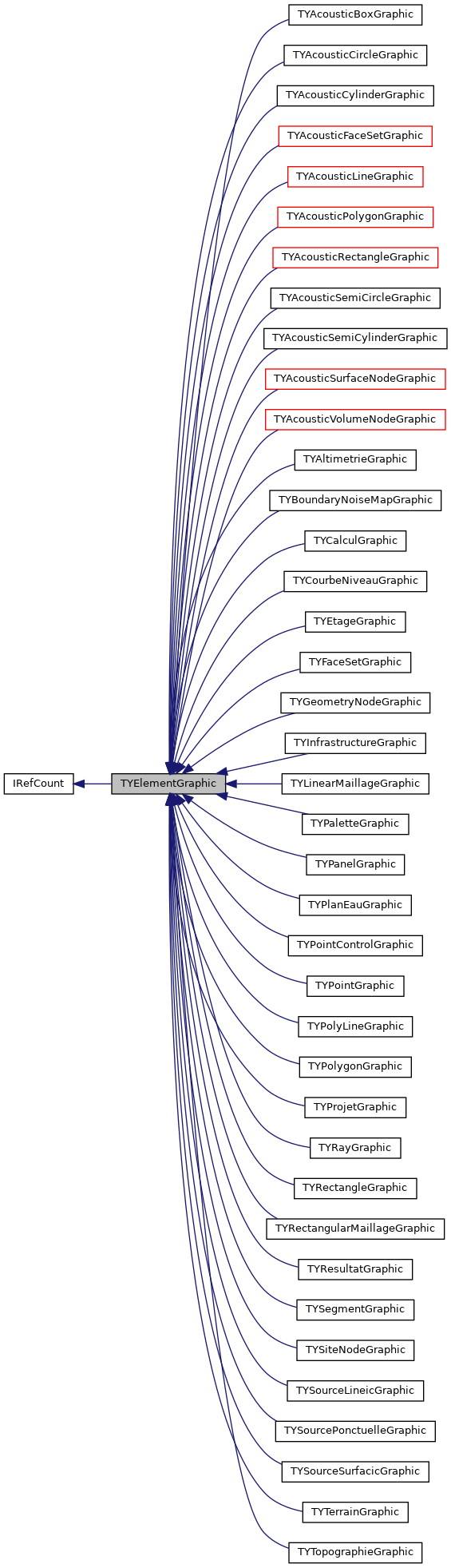

Inheritance diagram for TYElementGraphic:

[legend]

Collaboration diagram for TYElementGraphic:

[legend]

Public Member Functions
virtual	~TYElementGraphic ()

void	setElement (TYElement *pElt)

TYElement *	getTYElement ()

const TYElement *	getTYElement () const

void	updateTree ()

virtual void	update (bool force=false)

virtual void	display (TYRenderContext &renderContext)

void	setModified (bool modified=true)

bool	getModified () const

void	setVisible (bool visible=true)

bool	getVisible () const

void	setTexture (bool state=true)

bool	getTexture ()

OBox	boundingBox () const

virtual OBox	computeBoundingBox () const

virtual void	getChilds (TYListPtrTYElementGraphic &childs, bool recursif=true)

void	getChilds (TYListPtrConstTYElementGraphic &childs, bool recursif=true) const

void	setBoundingBoxVisible (bool state=true)

bool	isBoundingBoxVisible () const

void	setOnlyBoundingBox (bool state=true)

bool	getOnlyBoundingBox () const

virtual void	collectMeshInstances (std::vector< OGLMeshInstance > &meshInstances, TYRenderContext *renderContext) const

const TYGeometryNodeGraphic *	nearestGeoNode () const

QMatrix4x4	globalMatrix () const

Public Member Functions inherited from IRefCount
	IRefCount ()

virtual	~IRefCount ()

virtual int	incRef ()

virtual int	decRef ()

int	getRefCount () const

Static Public Attributes
static bool	_gDrawNormals = false
	Indique si les normals doivent etre visible. More...

static bool	_gDrawPlafond = true
	Indique si les plafonds doivent etre visible. More...

Protected Member Functions
	TYElementGraphic (TYElement *pElt)

void	displayNormal (OVector3D normal, OPoint3D p1)

void	drawName (TYRenderContext &renderContext)

void	invalidateBoundingBox ()

Protected Attributes
TYElement *	_pElement
	L'element metier auquel cet element graphique metier est associe. More...

bool	_highlight
	Indique si le highlight est active pour cet element. More...

bool	_texture
	Indique si le texturing est active pour cet element. More...

bool	_visible
	Inique si l'element est visible. More...

Protected Attributes inherited from IRefCount
int	m_refCount
	The reference counter. More...

Private Attributes
bool	_boundingBoxDirty

bool	_modified
	Indique si l'element associe a ete modifie. More...

bool	_viewOnlyHighlight
	Inique si on affiche la bounding box seule. More...

OBox	_boundingBox

Detailed Description

classe graphique pour un element de base

Definition at line 65 of file TYElementGraphic.h.

Constructor & Destructor Documentation

◆ ~TYElementGraphic()

TYElementGraphic::~TYElementGraphic ( )

virtual

Destructeur.

Definition at line 60 of file TYElementGraphic.cpp.

◆ TYElementGraphic()

TYElementGraphic::TYElementGraphic ( TYElement * pElt )

protected

Constructeur.

Definition at line 46 of file TYElementGraphic.cpp.

Member Function Documentation

◆ boundingBox()

OBox TYElementGraphic::boundingBox ( ) const

Get des extremites de la boite englobante de l'objet.

Definition at line 219 of file TYElementGraphic.cpp.

Here is the call graph for this function:

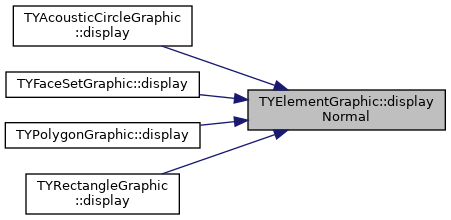

Here is the caller graph for this function:

◆ collectMeshInstances()

void TYElementGraphic::collectMeshInstances	(	std::vector< OGLMeshInstance > &	meshInstances,
		TYRenderContext *	renderContext
	)		const

virtual

Collect mesh instances

Reimplemented in TYTopographieGraphic, TYSiteNodeGraphic, TYCourbeNiveauGraphic, TYAltimetrieGraphic, TYAcousticRectangleGraphic, and TYPlanEauGraphic.

Definition at line 289 of file TYElementGraphic.cpp.

Here is the caller graph for this function:

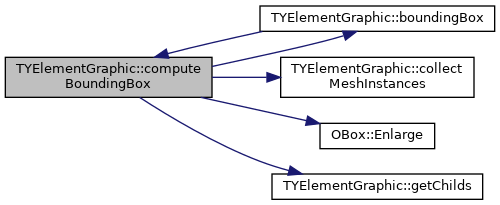

◆ computeBoundingBox()

OBox TYElementGraphic::computeBoundingBox ( ) const

virtual

Build the bounding box, with the min and max of each coordinate

Reimplemented in TYTerrainGraphic, TYSourceSurfacicGraphic, TYSourcePonctuelleGraphic, TYSourceLineicGraphic, TYSegmentGraphic, TYRectangularMaillageGraphic, TYRectangleGraphic, TYRayGraphic, TYPolyLineGraphic, TYPolygonGraphic, TYPointGraphic, TYPointControlGraphic, TYLinearMaillageGraphic, TYGeometryNodeGraphic, TYFaceSetGraphic, TYEtageGraphic, TYBoundaryNoiseMapGraphic, TYAltimetrieGraphic, TYAcousticVolumeNodeGraphic, TYAcousticSurfaceNodeGraphic, TYAcousticSemiCylinderGraphic, TYAcousticSemiCircleGraphic, TYAcousticRectangleNodeGraphic, TYAcousticRectangleGraphic, TYAcousticPolygonGraphic, TYAcousticLineGraphic, TYAcousticFaceSetGraphic, TYAcousticCylinderGraphic, TYAcousticCircleGraphic, and TYAcousticBoxGraphic.

Definition at line 229 of file TYElementGraphic.cpp.

Here is the call graph for this function:

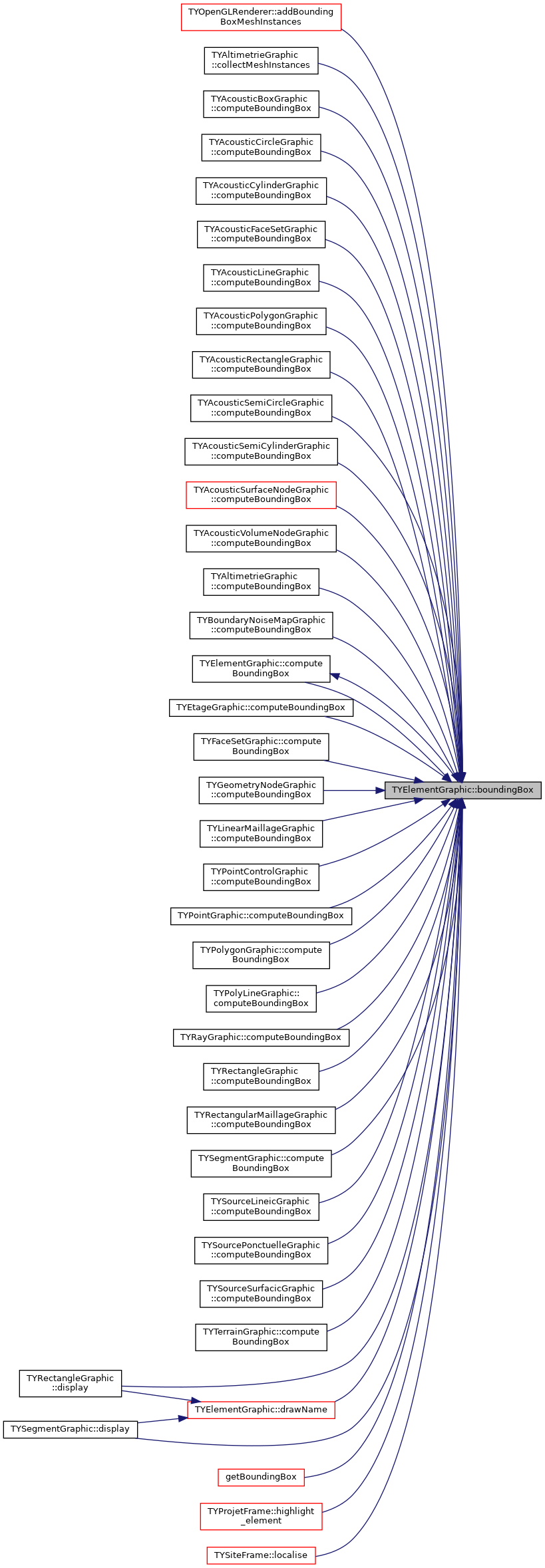

Here is the caller graph for this function:

◆ display()

void TYElementGraphic::display ( TYRenderContext & renderContext )

virtual

Effectue le trace openGL de l'objet graphique

Parameters

pModelerElement	element du modeleur a afficher
mode	Gere les modes rendu et select pour le picking.

Reimplemented in TYAcousticBoxGraphic, TYTopographieGraphic, TYTerrainGraphic, TYSourceSurfacicGraphic, TYSourcePonctuelleGraphic, TYSourceLineicGraphic, TYSiteNodeGraphic, TYSegmentGraphic, TYResultatGraphic, TYRectangularMaillageGraphic, TYRectangleGraphic, TYRayGraphic, TYProjetGraphic, TYPolyLineGraphic, TYPolygonGraphic, TYPointGraphic, TYPointControlGraphic, TYPlanEauGraphic, TYPanelGraphic, TYPaletteGraphic, TYLinearMaillageGraphic, TYInfrastructureGraphic, TYGeometryNodeGraphic, TYFaceSetGraphic, TYEtageGraphic, TYEcranGraphic, TYCourbeNiveauGraphic, TYCalculGraphic, TYBoundaryNoiseMapGraphic, TYAltimetrieGraphic, TYAcousticVolumeNodeGraphic, TYAcousticSurfaceNodeGraphic, TYAcousticSemiCylinderGraphic, TYAcousticSemiCircleGraphic, TYAcousticRectangleNodeGraphic, TYAcousticRectangleGraphic, TYAcousticPolygonGraphic, TYAcousticLineGraphic, TYAcousticFaceSetGraphic, TYAcousticCylinderGraphic, and TYAcousticCircleGraphic.

Definition at line 210 of file TYElementGraphic.cpp.

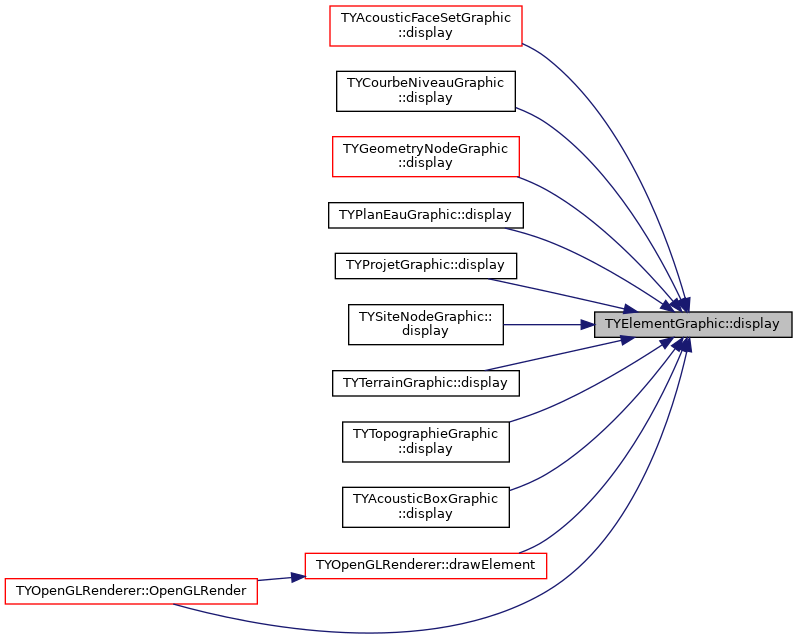

Here is the caller graph for this function:

◆ displayNormal()

void TYElementGraphic::displayNormal	(	OVector3D	normal,
		OPoint3D	p1
	)

protected

Definition at line 120 of file TYElementGraphic.cpp.

Here is the caller graph for this function:

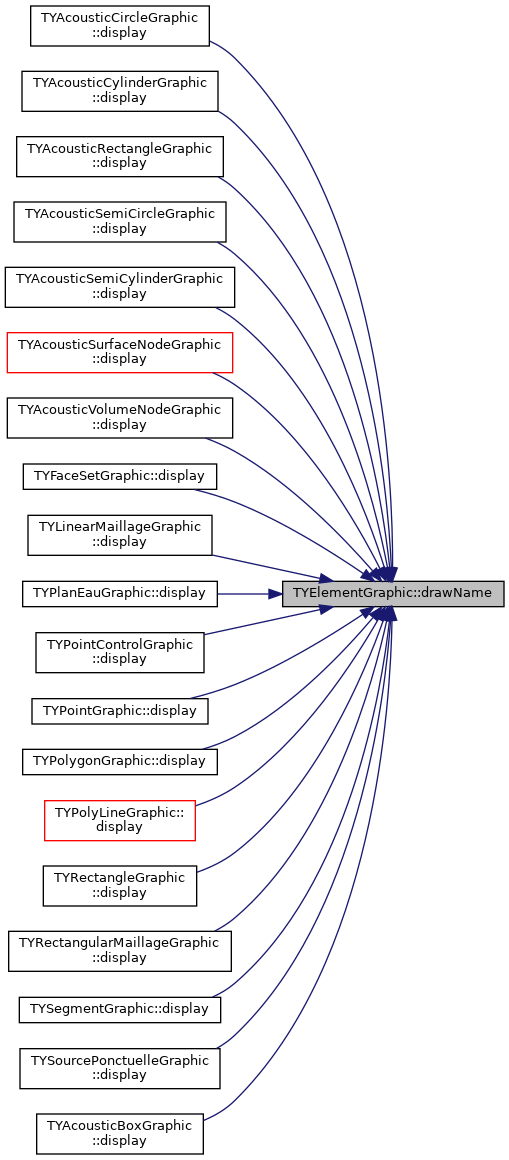

◆ drawName()

void TYElementGraphic::drawName ( TYRenderContext & renderContext )

protected

Definition at line 137 of file TYElementGraphic.cpp.

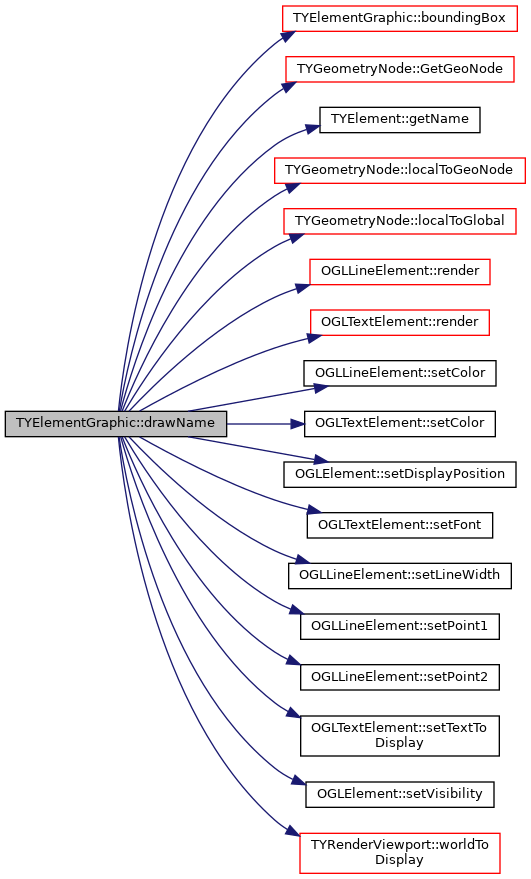

Here is the call graph for this function:

Here is the caller graph for this function:

◆ getChilds() [1/2]

void TYElementGraphic::getChilds	(	TYListPtrConstTYElementGraphic &	childs,
		bool	recursif = `true`
	)		const

inline

Store each child of the box in childs. If recursif is true, also store the children of each child.

Definition at line 179 of file TYElementGraphic.h.

Here is the call graph for this function:

◆ getChilds() [2/2]

virtual void TYElementGraphic::getChilds	(	TYListPtrTYElementGraphic &	childs,
		bool	recursif = `true`
	)

inlinevirtual

Store each child of the box in childs. If recursif is true, also store the children of each child

Reimplemented in TYBoundaryNoiseMapGraphic, TYTopographieGraphic, TYTerrainGraphic, TYSourceSurfacicGraphic, TYSourceLineicGraphic, TYSiteNodeGraphic, TYProjetGraphic, TYPlanEauGraphic, TYInfrastructureGraphic, TYGeometryNodeGraphic, TYEtageGraphic, TYCourbeNiveauGraphic, TYCalculGraphic, TYAltimetrieGraphic, TYAcousticVolumeNodeGraphic, TYAcousticSurfaceNodeGraphic, TYAcousticSemiCylinderGraphic, TYAcousticRectangleGraphic, TYAcousticPolygonGraphic, TYAcousticLineGraphic, TYAcousticCylinderGraphic, and TYAcousticBoxGraphic.

Definition at line 173 of file TYElementGraphic.h.

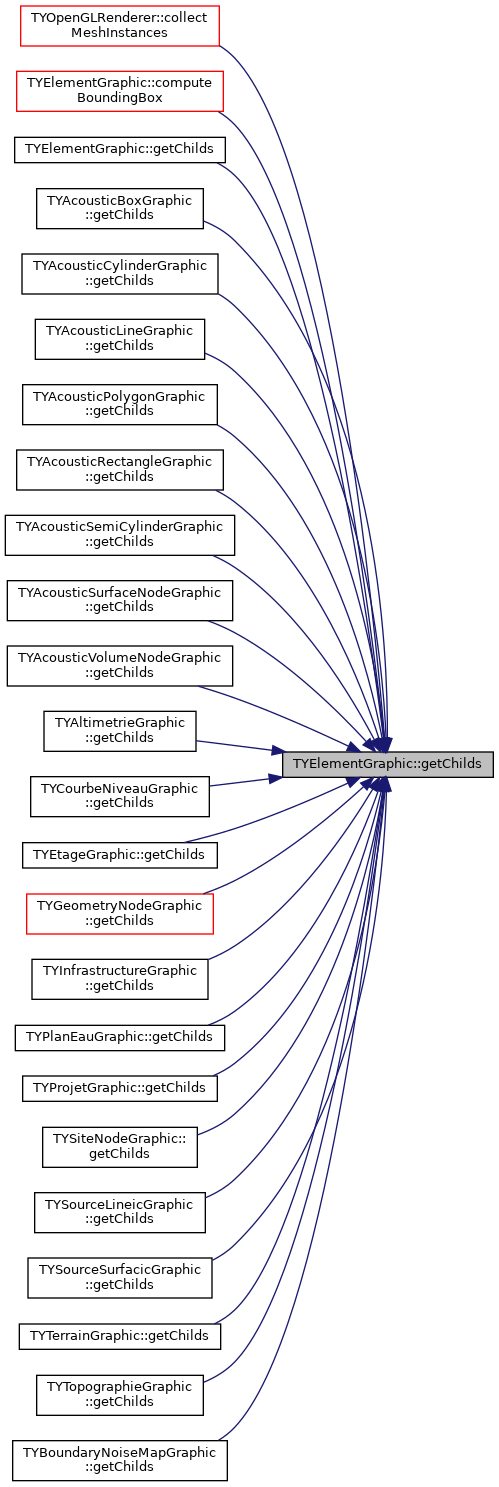

Here is the caller graph for this function:

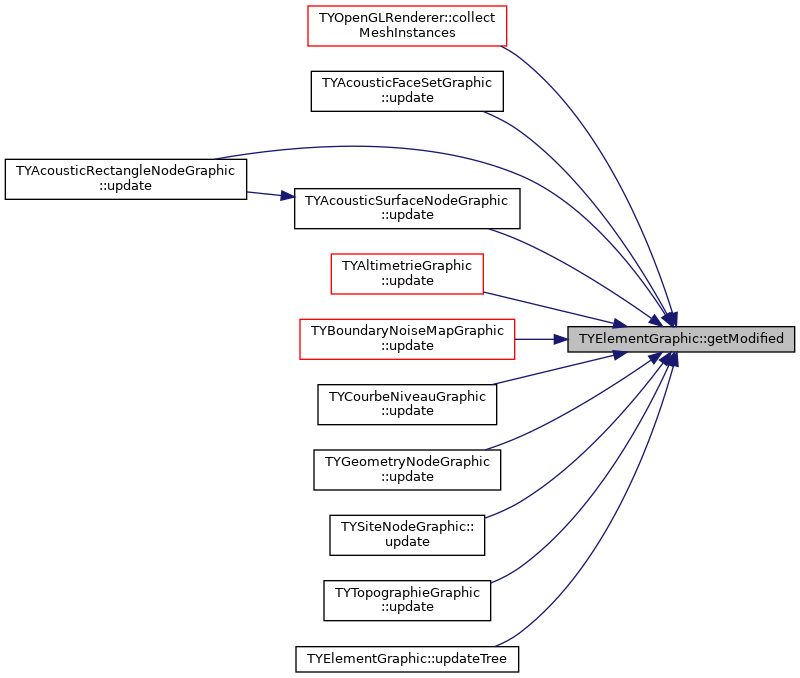

◆ getModified()

bool TYElementGraphic::getModified ( ) const

Set/Get du flag indiquant si l'element associe a ete modifie.

Definition at line 109 of file TYElementGraphic.cpp.

Here is the caller graph for this function:

◆ getOnlyBoundingBox()

bool TYElementGraphic::getOnlyBoundingBox ( ) const

Should we only show the bounding box

Definition at line 197 of file TYElementGraphic.cpp.

◆ getTexture()

bool TYElementGraphic::getTexture ( )

inline

Set/Get du flag indiquant si l'element est texture.

Definition at line 154 of file TYElementGraphic.h.

◆ getTYElement() [1/2]

TYElement* TYElementGraphic::getTYElement ( )

inline

Renvoie l'element associe a cet objet (la methode getElement n'est pas membre de la classe de base TYElementGraphic!).

Definition at line 82 of file TYElementGraphic.h.

Here is the caller graph for this function:

◆ getTYElement() [2/2]

const TYElement* TYElementGraphic::getTYElement ( ) const

inline

Renvoie l'element associe a cet objet (la methode getElement n'est pas membre de la classe de base TYElementGraphic!).

Definition at line 91 of file TYElementGraphic.h.

◆ getVisible()

bool TYElementGraphic::getVisible ( ) const

inline

Set/Get du flag indiquant si l'element est visible.

Definition at line 139 of file TYElementGraphic.h.

Here is the caller graph for this function:

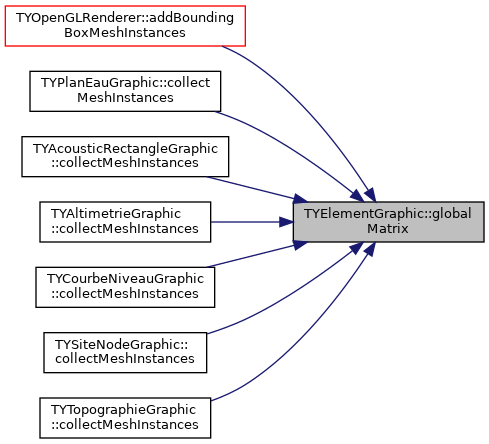

◆ globalMatrix()

QMatrix4x4 TYElementGraphic::globalMatrix ( ) const

Get the global (relative to project root) matrix of this element

Definition at line 312 of file TYElementGraphic.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ invalidateBoundingBox()

void TYElementGraphic::invalidateBoundingBox ( )

protected

Definition at line 261 of file TYElementGraphic.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ isBoundingBoxVisible()

bool TYElementGraphic::isBoundingBoxVisible ( ) const

Retourne true si la bounding box doit etre affiche

Definition at line 192 of file TYElementGraphic.cpp.

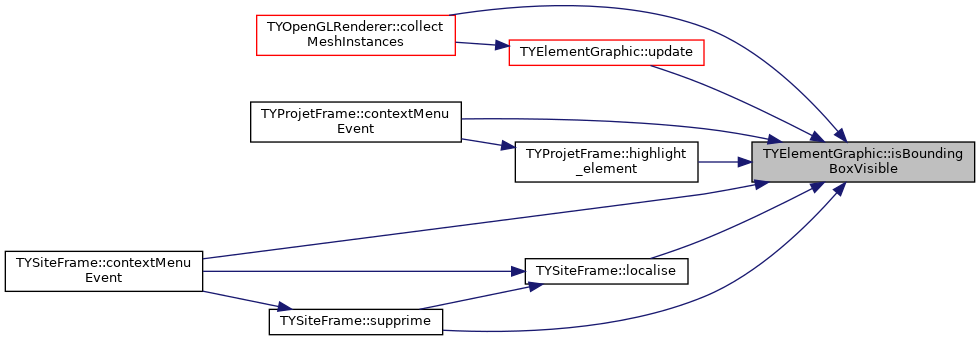

Here is the caller graph for this function:

◆ nearestGeoNode()

const TYGeometryNodeGraphic * TYElementGraphic::nearestGeoNode ( ) const

Get the global the neareset geometry node parent up in the tree

Definition at line 292 of file TYElementGraphic.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ setBoundingBoxVisible()

void TYElementGraphic::setBoundingBoxVisible ( bool state = true )

Afficher ou non la bounding box de l'objet graphique de l'element metier ou de l'ensemble des objets graphiques le composant.

Definition at line 114 of file TYElementGraphic.cpp.

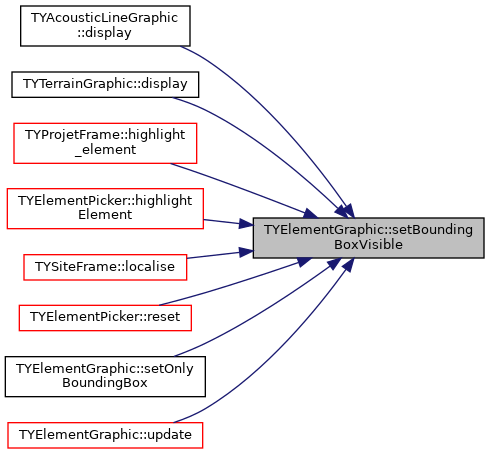

Here is the caller graph for this function:

◆ setElement()

void TYElementGraphic::setElement ( TYElement * pElt )

Definit l'element associe a cet objet.

Definition at line 62 of file TYElementGraphic.cpp.

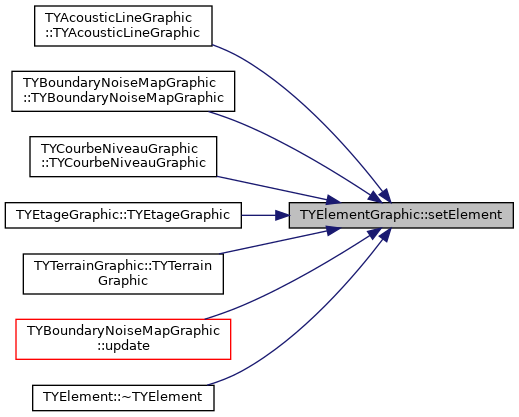

Here is the caller graph for this function:

◆ setModified()

void TYElementGraphic::setModified ( bool modified = true )

Set/Get du flag indiquant si l'element associe a ete modifie.

Definition at line 321 of file TYElementGraphic.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ setOnlyBoundingBox()

void TYElementGraphic::setOnlyBoundingBox ( bool state = true )

Affiche uniquement la bounding box.

Definition at line 202 of file TYElementGraphic.cpp.

Here is the call graph for this function:

◆ setTexture()

void TYElementGraphic::setTexture ( bool state = true )

inline

Set/Get du flag indiquant si l'element est texture.

Definition at line 147 of file TYElementGraphic.h.

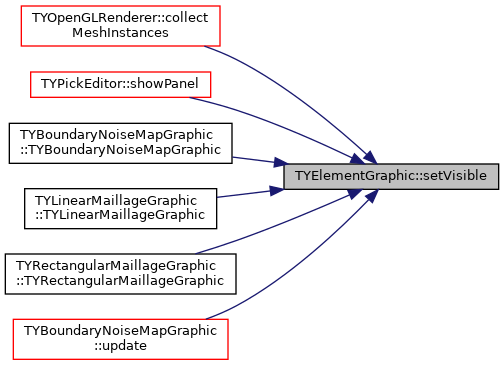

◆ setVisible()

void TYElementGraphic::setVisible ( bool visible = true )

inline

Set/Get du flag indiquant si l'element est visible.

Definition at line 132 of file TYElementGraphic.h.

Here is the caller graph for this function:

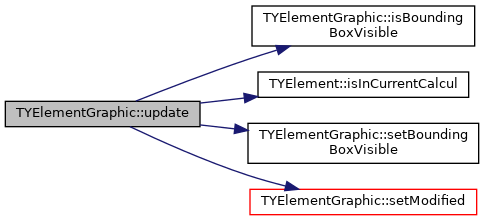

◆ update()

void TYElementGraphic::update ( bool force = false )

virtual

Mets a jour l'objet 3D associe a cet objet graphique metier. Remarque : Lorsque cette methode est surchargee, un appel de l'implementation parent (TYElementGraphic::update()) doit etre fait a la fin.

Parameters

force Outrepasse l'etat du flag 'modified' et effectue la mise a jour.

Reimplemented in TYTopographieGraphic, TYTerrainGraphic, TYSourceSurfacicGraphic, TYSourcePonctuelleGraphic, TYSourceLineicGraphic, TYSiteNodeGraphic, TYSegmentGraphic, TYResultatGraphic, TYRectangularMaillageGraphic, TYRectangleGraphic, TYRayGraphic, TYProjetGraphic, TYPolyLineGraphic, TYPolygonGraphic, TYPointGraphic, TYPointControlGraphic, TYPlanEauGraphic, TYPanelGraphic, TYPaletteGraphic, TYLinearMaillageGraphic, TYInfrastructureGraphic, TYGeometryNodeGraphic, TYFaceSetGraphic, TYEtageGraphic, TYCourbeNiveauGraphic, TYCalculGraphic, TYBoundaryNoiseMapGraphic, TYAltimetrieGraphic, TYAcousticVolumeNodeGraphic, TYAcousticSurfaceNodeGraphic, TYAcousticSemiCylinderGraphic, TYAcousticSemiCircleGraphic, TYAcousticRectangleNodeGraphic, TYAcousticRectangleGraphic, TYAcousticPolygonGraphic, TYAcousticLineGraphic, TYAcousticFaceSetGraphic, TYAcousticCylinderGraphic, TYAcousticCircleGraphic, and TYAcousticBoxGraphic.

Definition at line 83 of file TYElementGraphic.cpp.

Here is the call graph for this function:

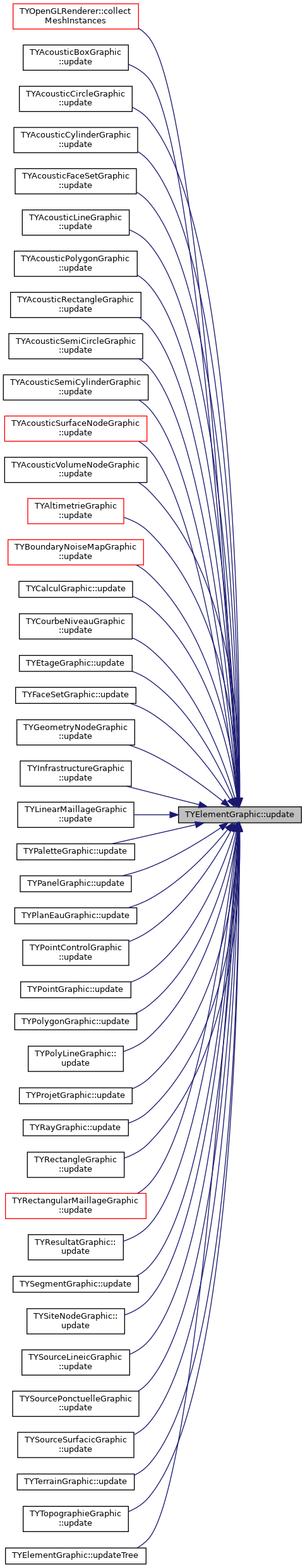

Here is the caller graph for this function:

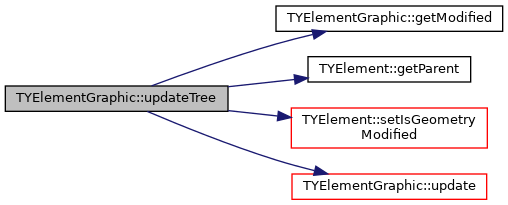

◆ updateTree()

void TYElementGraphic::updateTree ( )

Mets a jour le graph de scene. Si l'element a un parent l'update est propage dans le graph.

Definition at line 67 of file TYElementGraphic.cpp.

Here is the call graph for this function:

Member Data Documentation

◆ _boundingBox

OBox TYElementGraphic::_boundingBox

mutableprivate

Definition at line 270 of file TYElementGraphic.h.

◆ _boundingBoxDirty

bool TYElementGraphic::_boundingBoxDirty

mutableprivate

Definition at line 261 of file TYElementGraphic.h.

◆ _gDrawNormals

bool TYElementGraphic::_gDrawNormals = false

static

Indique si les normals doivent etre visible.

Definition at line 254 of file TYElementGraphic.h.

◆ _gDrawPlafond

bool TYElementGraphic::_gDrawPlafond = true

static

Indique si les plafonds doivent etre visible.

Definition at line 257 of file TYElementGraphic.h.

◆ _highlight

bool TYElementGraphic::_highlight

protected

Indique si le highlight est active pour cet element.

Definition at line 277 of file TYElementGraphic.h.

◆ _modified

bool TYElementGraphic::_modified

private

Indique si l'element associe a ete modifie.

Definition at line 264 of file TYElementGraphic.h.

◆ _pElement

TYElement* TYElementGraphic::_pElement

protected

L'element metier auquel cet element graphique metier est associe.

Definition at line 274 of file TYElementGraphic.h.

◆ _texture

bool TYElementGraphic::_texture

protected

Indique si le texturing est active pour cet element.

Definition at line 280 of file TYElementGraphic.h.

◆ _viewOnlyHighlight

bool TYElementGraphic::_viewOnlyHighlight

private

Inique si on affiche la bounding box seule.

Definition at line 267 of file TYElementGraphic.h.

◆ _visible

bool TYElementGraphic::_visible

protected

Inique si l'element est visible.

Definition at line 283 of file TYElementGraphic.h.

The documentation for this class was generated from the following files:

/home/docs/checkouts/readthedocs.org/user_builds/code-tympan/checkouts/issue_647/Tympan/gui/gl/TYElementGraphic.h
/home/docs/checkouts/readthedocs.org/user_builds/code-tympan/checkouts/issue_647/Tympan/gui/gl/TYElementGraphic.cpp

Public Member Functions

Static Public Attributes

Protected Member Functions

Protected Attributes

Private Attributes

Detailed Description

Constructor & Destructor Documentation

◆ ~TYElementGraphic()

◆ TYElementGraphic()

Member Function Documentation

◆ boundingBox()

◆ collectMeshInstances()

◆ computeBoundingBox()

◆ display()

◆ displayNormal()

◆ drawName()

◆ getChilds() [1/2]

◆ getChilds() [2/2]

◆ getModified()

◆ getOnlyBoundingBox()

◆ getTexture()

◆ getTYElement() [1/2]

◆ getTYElement() [2/2]

◆ getVisible()

◆ globalMatrix()

◆ invalidateBoundingBox()

◆ isBoundingBoxVisible()

◆ nearestGeoNode()

◆ setBoundingBoxVisible()

◆ setElement()

◆ setModified()

◆ setOnlyBoundingBox()

◆ setTexture()

◆ setVisible()

◆ update()

◆ updateTree()

Member Data Documentation

◆ _boundingBox

◆ _boundingBoxDirty

◆ _gDrawNormals

◆ _gDrawPlafond

◆ _highlight

◆ _modified

◆ _pElement

◆ _texture

◆ _viewOnlyHighlight

◆ _visible
