TYRectangularMaillageGraphic Class Reference

classe graphique pour un maillage rectangulaire More...

#include <TYRectangularMaillageGraphic.h>

Inheritance diagram for TYRectangularMaillageGraphic:
Inheritance graph
[legend]

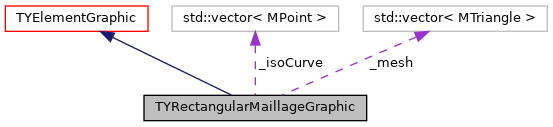

Collaboration diagram for TYRectangularMaillageGraphic:
Collaboration graph
[legend]

Public Types

enum  RenderingMode { RENDER_SURF , RENDER_LINES , RENDER_MIXED }


Public Member Functions

 TYRectangularMaillageGraphic (TYRectangularMaillage *pElement)

virtual ~TYRectangularMaillageGraphic ()

virtual void update (bool force=false)

virtual void display (TYRenderContext &renderContext)

virtual OBox computeBoundingBox () const

virtual void setRendering (int mode)

- Public Member Functions inherited from TYElementGraphic
virtual ~TYElementGraphic ()

void setElement (TYElement *pElt)

TYElement * getTYElement ()

const TYElement * getTYElement () const

void updateTree ()

void setModified (bool modified=true)

bool getModified () const

void setVisible (bool visible=true)

bool getVisible ()

void setRecursiveVisible (bool visible=true)

void setTexture (bool state=true)

bool getTexture ()

OBox boundingBox () const

virtual void getChilds (TYListPtrTYElementGraphic &childs, bool recursif=true)

void getChilds (TYListPtrConstTYElementGraphic &childs, bool recursif=true) const

void setBoundingBoxVisible (bool state=true)

bool isBoundingBoxVisible () const

void setOnlyBoundingBox (bool state=true)

- Public Member Functions inherited from IRefCount
 IRefCount ()

virtual ~IRefCount ()

virtual int incRef ()

virtual int decRef ()

int getRefCount () const


Public Attributes

enum TYRectangularMaillageGraphic::RenderingMode _Rendering


Protected Member Functions

virtual void displaySurface (TYRenderContext &renderContext)

virtual void displayLines (TYRenderContext &renderContext, bool invertColors=false)

virtual void displayMixed (TYRenderContext &renderContext)

- Protected Member Functions inherited from TYElementGraphic
 TYElementGraphic (TYElement *pElt)

void displayNormal (OVector3D normal, OPoint3D p1)

void drawName (TYRenderContext &renderContext)

void invalidateBoundingBox ()


Protected Attributes

std::vector< MTriangle > _mesh

std::vector< MPoint > _isoCurve

double _scalarX

double _scalarY

double _scalarW

double _scalarH

double _panelW

double _panelH

- Protected Attributes inherited from TYElementGraphic
TYElement * _pElement
 L'element metier auquel cet element graphique metier est associe. More...

bool _highlight
 Indique si le highlight est active pour cet element. More...

bool _texture
 Indique si le texturing est active pour cet element. More...

bool _visible
 Inique si l'element est visible. More...

- Protected Attributes inherited from IRefCount
int m_refCount
 The reference counter. More...


Private Member Functions

int nextPoint (const TYTabLPPointCalcul *pPtsCalcul, const int &index1, const int &index2)


Additional Inherited Members

- Static Public Attributes inherited from TYElementGraphic
static bool _gDrawNormals = false
 Indique si les normals doivent etre visible. More...

static bool _gDrawPlafond = true
 Indique si les plafonds doivent etre visible. More...


Detailed Description

classe graphique pour un maillage rectangulaire

Definition at line 44 of file TYRectangularMaillageGraphic.h.

Member Enumeration Documentation

◆ RenderingMode

enum TYRectangularMaillageGraphic::RenderingMode
Enumerator
RENDER_SURF
RENDER_LINES
RENDER_MIXED

Definition at line 51 of file TYRectangularMaillageGraphic.h.

Constructor & Destructor Documentation

◆ TYRectangularMaillageGraphic()

TYRectangularMaillageGraphic::TYRectangularMaillageGraphic ( TYRectangularMaillage *  pElement)

Constructor

Definition at line 34 of file TYRectangularMaillageGraphic.cpp.

Here is the call graph for this function:

◆ ~TYRectangularMaillageGraphic()

TYRectangularMaillageGraphic::~TYRectangularMaillageGraphic ( )
virtual

Destructor

Definition at line 59 of file TYRectangularMaillageGraphic.cpp.

Member Function Documentation

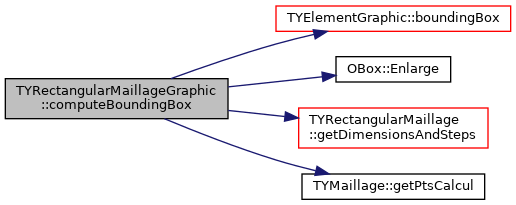

◆ computeBoundingBox()

OBox TYRectangularMaillageGraphic::computeBoundingBox ( ) const
virtual

Build the bounding box, with the min and max of each coordinate

Reimplemented from TYElementGraphic.

Definition at line 79 of file TYRectangularMaillageGraphic.cpp.

Here is the call graph for this function:

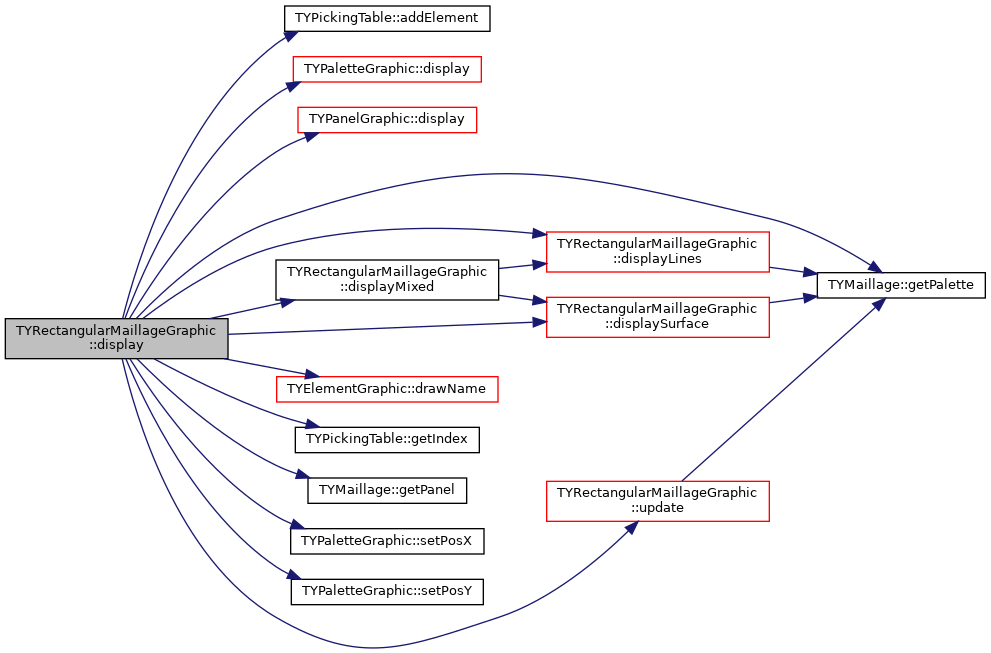

◆ display()

void TYRectangularMaillageGraphic::display ( TYRenderContext &  renderContext)
virtual

Fonction d'affichage

Parameters
pModelerElementelement du modeleur a afficher
modemode d'affichage

Reimplemented from TYElementGraphic.

Definition at line 111 of file TYRectangularMaillageGraphic.cpp.

Here is the call graph for this function:

◆ displayLines()

void TYRectangularMaillageGraphic::displayLines ( TYRenderContext &  renderContext,
bool  invertColors = false
)
protectedvirtual

Definition at line 325 of file TYRectangularMaillageGraphic.cpp.

Here is the call graph for this function:
Here is the caller graph for this function:

◆ displayMixed()

void TYRectangularMaillageGraphic::displayMixed ( TYRenderContext &  renderContext)
protectedvirtual

Definition at line 374 of file TYRectangularMaillageGraphic.cpp.

Here is the call graph for this function:
Here is the caller graph for this function:

◆ displaySurface()

void TYRectangularMaillageGraphic::displaySurface ( TYRenderContext &  renderContext)
protectedvirtual

Definition at line 196 of file TYRectangularMaillageGraphic.cpp.

Here is the call graph for this function:
Here is the caller graph for this function:

◆ nextPoint()

int TYRectangularMaillageGraphic::nextPoint ( const TYTabLPPointCalcul *  pPtsCalcul,
const int &  index1,
const int &  index2
)
private

calcul le point suivant du maillage (traitement des maillages irreguliers)

Definition at line 380 of file TYRectangularMaillageGraphic.cpp.

◆ setRendering()

virtual void TYRectangularMaillageGraphic::setRendering ( int  mode)
inlinevirtual

Definition at line 91 of file TYRectangularMaillageGraphic.h.

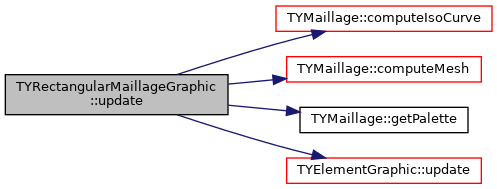

◆ update()

void TYRectangularMaillageGraphic::update ( bool  force = false)
virtual

Updates the 3D object associated to this object Note : When this method is overloaded, the parent implementation (TYElementGraphic::update()) must be called at the end

Parameters
forceoverstep the state of the flag 'modified' and apply the update.

Reimplemented from TYElementGraphic.

Definition at line 61 of file TYRectangularMaillageGraphic.cpp.

Here is the call graph for this function:
Here is the caller graph for this function:

Member Data Documentation

◆ _isoCurve

std::vector<MPoint> TYRectangularMaillageGraphic::_isoCurve
protected

Definition at line 104 of file TYRectangularMaillageGraphic.h.

◆ _mesh

std::vector<MTriangle> TYRectangularMaillageGraphic::_mesh
protected

Definition at line 103 of file TYRectangularMaillageGraphic.h.

◆ _panelH

double TYRectangularMaillageGraphic::_panelH
protected

Definition at line 111 of file TYRectangularMaillageGraphic.h.

◆ _panelW

double TYRectangularMaillageGraphic::_panelW
protected

Definition at line 110 of file TYRectangularMaillageGraphic.h.

◆ _Rendering

enum TYRectangularMaillageGraphic::RenderingMode TYRectangularMaillageGraphic::_Rendering

◆ _scalarH

double TYRectangularMaillageGraphic::_scalarH
protected

Definition at line 109 of file TYRectangularMaillageGraphic.h.

◆ _scalarW

double TYRectangularMaillageGraphic::_scalarW
protected

Definition at line 108 of file TYRectangularMaillageGraphic.h.

◆ _scalarX

double TYRectangularMaillageGraphic::_scalarX
protected

Definition at line 106 of file TYRectangularMaillageGraphic.h.

◆ _scalarY

double TYRectangularMaillageGraphic::_scalarY
protected

Definition at line 107 of file TYRectangularMaillageGraphic.h.

The documentation for this class was generated from the following files:
