Representation of one of the most optimal path between source and receptor: S—>R. The class TYChemin represents a path between a Source and a receptor (Recepteur class). It's constituted of a collection of steps (TYEtape class). Specific derivation of TYChemin for 9613Solver. More...

#include <TYChemin9613Sover.h>

Inheritance diagram for TYChemin9613Solver:

[legend]

Collaboration diagram for TYChemin9613Solver:

[legend]

Public Member Functions
	TYChemin9613Solver ()
	Constructor. More...

	TYChemin9613Solver (const TYChemin9613Solver &other)
	Copy contructor. More...

	~TYChemin9613Solver () override
	Destructor. More...

TYChemin9613Solver &	operator= (const TYChemin9613Solver &other)
	Operator =. More...

bool	operator== (const TYChemin9613Solver &other) const
	Operator ==. More...

bool	operator!= (const TYChemin9613Solver &other) const
	Operator !=. More...

void	calcAttenuation (const TYTabEtape9613Solver &tabEtapes, const AtmosphericConditions &atmos, double dp=0.0, double hs=0.0, double hr=0.0, double Gs=0.5, double Gm=0.5, double Gr=0.5)
	Compute the global attenuation on the path. More...

void	computeBarAttenuation (const OSpectreOctave &Dz, const bool vertical, const bool left)

OSpectreOctave &	getAttenuation (const TYTypeAttenuation type)
	Return attenuation of the path of the type. More...

void	setAttenuation (const TYTypeAttenuation &type, const OSpectreOctave &att)
	Set the atmospheric attenuation. More...

void	setAttenuationBarWhenNoPath (bool vertical, bool left)
	Set attenuation bar to max to traduce the lack of diffracted ray on this path. More...

Public Member Functions inherited from TYChemin
	TYChemin ()
	Constructor. More...

	TYChemin (const TYChemin &other)
	Copy contructor. More...

virtual	~TYChemin ()
	Destructor. More...

TYChemin &	operator= (const TYChemin &other)
	Operator =. More...

bool	operator== (const TYChemin &other) const
	Operator ==. More...

bool	operator!= (const TYChemin &other) const
	Operator !=. More...

double	getLongueur ()
	Get/Set the path length. More...

const double	getLongueur () const

void	setLongueur (const double &longueur)

double	getDistance ()
	Get/Set the distance between source and receptor. More...

const double	getDistance () const

void	setDistance (const double &distance)

void	setType (const TYTypeChemin &type)
	Change the path type. More...

const TYTypeChemin	getType () const
	Return the path type. More...

template<typename T >
void	build_eq_path (const T &tabEtapes)
	build an acoustic_path from the tab of etapes More...

acoustic_path *	get_ray (OPoint3D ptR)

Protected Attributes
std::map< TYTypeAttenuation, OSpectreOctave >	_attenuations
	Attenuations spectra of the path. More...

Protected Attributes inherited from TYChemin
TYTypeChemin	_typeChemin
	Path type (has an influence on the algorithm) More...

double	_longueur
	Total path length. More...

double	_distance
	Direct distance between source and receptor. More...

acoustic_path *	_eq_path
	Equivalent acoustic_path. More...

Private Member Functions
void	calcGroundAttenuations (double distance, double hs, double hr, double Gs, double Gm, double Gr)

OSpectreOctave	calcGroundAttenuationSR (double dp, double h, double G)

OSpectreOctave	calcGroundAttenuationM (double q, double Gm)

Detailed Description

Representation of one of the most optimal path between source and receptor: S—>R. The class TYChemin represents a path between a Source and a receptor (Recepteur class). It's constituted of a collection of steps (TYEtape class). Specific derivation of TYChemin for 9613Solver.

Definition at line 40 of file TYChemin9613Sover.h.

Constructor & Destructor Documentation

◆ TYChemin9613Solver() [1/2]

TYChemin9613Solver::TYChemin9613Solver ( )

Constructor.

Definition at line 19 of file TYChemin9613Solver.cpp.

◆ TYChemin9613Solver() [2/2]

TYChemin9613Solver::TYChemin9613Solver ( const TYChemin9613Solver & other )

Copy contructor.

Definition at line 24 of file TYChemin9613Solver.cpp.

◆ ~TYChemin9613Solver()

TYChemin9613Solver::~TYChemin9613Solver ( )

override

Destructor.

Definition at line 29 of file TYChemin9613Solver.cpp.

Member Function Documentation

◆ calcAttenuation()

void TYChemin9613Solver::calcAttenuation	(	const TYTabEtape9613Solver &	tabEtapes,
		const AtmosphericConditions &	atmos,
		double	dp = `0.0`,
		double	hs = `0.0`,
		double	hr = `0.0`,
		double	Gs = `0.5`,
		double	Gm = `0.5`,
		double	Gr = `0.5`
	)

Compute the global attenuation on the path.

Parameters

[in]	tabEtapes	Array of steps.
[in]	atmos	Atmospheric ocnditions.
[in]	dp	Distance 2D between source and receptor for considered path.
[in]	hs	Height of source.
[in]	hr	Height of receptor
[in]	Gs	Ground factor of the source zone.
[in]	Gm	Ground factor of the middle zone.
[in]	Gr	Ground factor of the receptor zone.

Definition at line 67 of file TYChemin9613Solver.cpp.

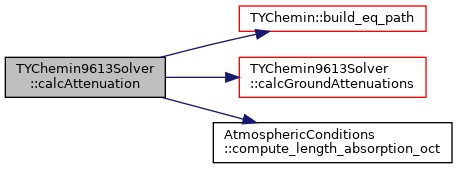

Here is the call graph for this function:

Here is the caller graph for this function:

◆ calcGroundAttenuationM()

OSpectreOctave TYChemin9613Solver::calcGroundAttenuationM	(	double	q,
		double	Gm
	)

private

Definition at line 200 of file TYChemin9613Solver.cpp.

Here is the caller graph for this function:

◆ calcGroundAttenuations()

void TYChemin9613Solver::calcGroundAttenuations	(	double	distance,
		double	hs,
		double	hr,
		double	Gs,
		double	Gm,
		double	Gr
	)

private

Definition at line 168 of file TYChemin9613Solver.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ calcGroundAttenuationSR()

OSpectreOctave TYChemin9613Solver::calcGroundAttenuationSR	(	double	dp,
		double	h,
		double	G
	)

private

Definition at line 187 of file TYChemin9613Solver.cpp.

Here is the caller graph for this function:

◆ computeBarAttenuation()

void TYChemin9613Solver::computeBarAttenuation	(	const OSpectreOctave &	Dz,
		const bool	vertical,
		const bool	left
	)

\ brief compute barrier attenuation on the path

Definition at line 107 of file TYChemin9613Solver.cpp.

◆ getAttenuation()

OSpectreOctave & TYChemin9613Solver::getAttenuation ( const TYTypeAttenuation type )

Return attenuation of the path of the type.

Returns: _attenuations[type]

Definition at line 144 of file TYChemin9613Solver.cpp.

Here is the caller graph for this function:

◆ operator!=()

bool TYChemin9613Solver::operator!= ( const TYChemin9613Solver & other ) const

Operator !=.

Definition at line 62 of file TYChemin9613Solver.cpp.

Here is the call graph for this function:

◆ operator=()

TYChemin9613Solver & TYChemin9613Solver::operator= ( const TYChemin9613Solver & other )

Operator =.

Definition at line 34 of file TYChemin9613Solver.cpp.

Here is the call graph for this function:

◆ operator==()

bool TYChemin9613Solver::operator== ( const TYChemin9613Solver & other ) const

Operator ==.

Definition at line 45 of file TYChemin9613Solver.cpp.

Here is the caller graph for this function:

◆ setAttenuation()

void TYChemin9613Solver::setAttenuation	(	const TYTypeAttenuation &	type,
		const OSpectreOctave &	att
	)

inline

Set the atmospheric attenuation.

Definition at line 103 of file TYChemin9613Sover.h.

◆ setAttenuationBarWhenNoPath()

void TYChemin9613Solver::setAttenuationBarWhenNoPath	(	bool	vertical,
		bool	left
	)

Set attenuation bar to max to traduce the lack of diffracted ray on this path.

Definition at line 149 of file TYChemin9613Solver.cpp.

Member Data Documentation

◆ _attenuations

std::map<TYTypeAttenuation, OSpectreOctave> TYChemin9613Solver::_attenuations

protected

Attenuations spectra of the path.

Definition at line 116 of file TYChemin9613Sover.h.

The documentation for this class was generated from the following files:

/home/docs/checkouts/readthedocs.org/user_builds/code-tympan/checkouts/release-4.7.0/Tympan/solvers/9613/9613Solver/TYChemin9613Sover.h
/home/docs/checkouts/readthedocs.org/user_builds/code-tympan/checkouts/release-4.7.0/Tympan/solvers/9613/9613Solver/TYChemin9613Solver.cpp
