TYSiteModelerFrame Class Reference

Classe Modeler specialisee pour l'edition des sites. More...

#include <TYSiteModelerFrame.h>

Inheritance diagram for TYSiteModelerFrame:

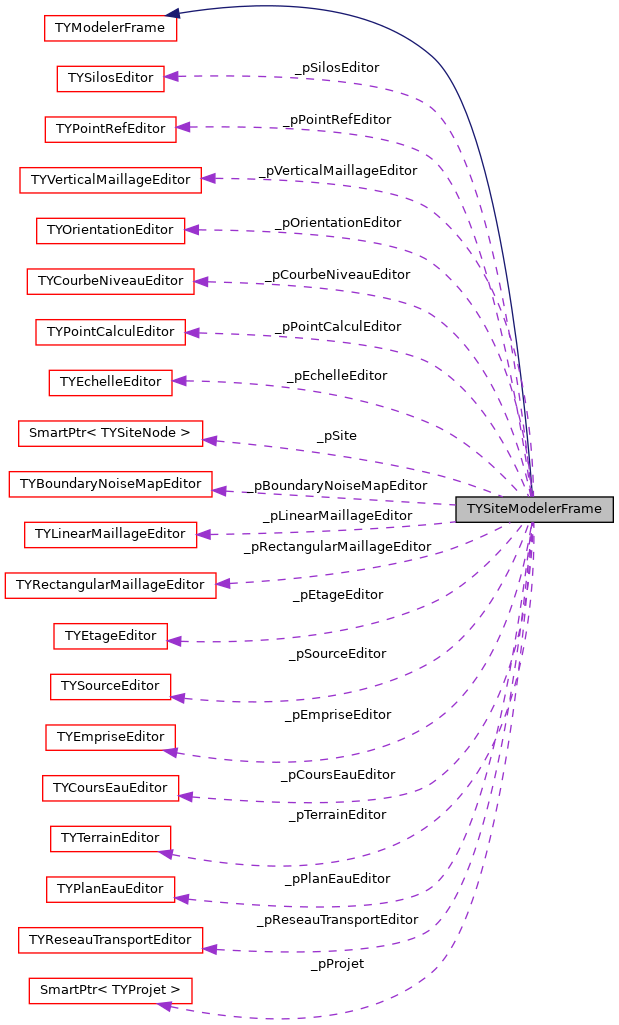

Collaboration diagram for TYSiteModelerFrame:

Public Types
enum	RenderMaillageMode { Surface , Lines , Mixed , NbOfRenderMaillageMode }
enum	SiteModelerMode {   EchelleMode = NbOfModelerMode , PointRefMode , OrientationMode , EmpriseMode ,   CourbeNiveauMode , TerrainMode , VegetationMode , PlanEauMode ,   CoursEauMode , SrcPonctMode , RecepteurMode , RouteMode ,   ReseauTransportMode , EtageMode , MachineMode , BatimentMode ,   EcranMode , SiteMode , MaillageRectMode , MaillageLinearMode ,   MaillageVerticalMode , BoundaryNoiseMapMode , PointsCtrlMode , NbOfSiteModelerMode ,   SilosMode }
	Les differents modes d'edition d'un site. More...
Public Types inherited from TYModelerFrame
enum	ModelerViewType {   TopView , BottomView , LeftView , RightView ,   FrontView , RearView , PerspView , FreeView ,   NbOfViews }
enum	ModelerMode {   NoMode = -1 , CameraMode , CameraZoneMode , DistanceMode ,   MovingMode , RotationMode , EditionMode , NbOfModelerMode }

Public Slots
virtual void	setViewType (int view)
virtual void	setEditorMode (int mode)
virtual void	updateView (bool clipping=true, bool axesAndGrid=true)
virtual void	updatePreferences ()
virtual bool	close ()
int	getMaillageRenderMode ()
void	showCrbNiv (bool show)
void	enableAltimetrieButton (bool enable)
void	showAltimetrie (bool show)
void	showImageSite (bool show)
void	updateAltiOpacity (int view=-1)
virtual void	setMaillageRenderModeSlot ()
virtual void	setSelectMaillageBox (const QString &name)
Public Slots inherited from TYModelerFrame
virtual void	setViewType (int view)
virtual void	setRenderModeSlot (int mode)
virtual void	setRenderMode (TYOpenGLRenderer::RenderMode mode, bool bUpdateGL)
virtual void	setEditorMode (int mode)
void	setEditorModeToCamera ()
void	showGrid (bool show)
void	showNormals (bool show)
void	showPlafond (bool show)
void	showSources ()
void	showRays (bool show)
void	setKeepRays (bool keepRays)
void	setSnapGridActive (bool state)
void	setCameraCoordinates ()
void	screenShot ()
virtual void	updateView (bool clipping=true, bool axesAndGrid=true)
void	updateAxes ()
void	updateCurPosInfo (int x, int y)
void	updateGrid ()
void	updateElementGraphic (bool force=false)
void	print ()
void	copy ()
void	editElement ()
void	fit ()
virtual void	updatePreferences ()
void	resizeGrid ()
virtual bool	close ()
void	setWireframeOnMovingCamera (bool state)
void	startMovingRenderMode ()
void	stopMovingRenderMode ()
void	updateScale ()
void	showScale (bool show)
static double	getDouble (const QString &title, const QString &txt, double min, double max, double val, bool &ok, int dec=2)

Public Member Functions
	TYSiteModelerFrame (QWidget *parent=0, const char *name=0, Qt::WindowFlags f=Qt::SubWindow)
	TYSiteModelerFrame (LPTYProjet pProjet, QWidget *parent=0, const char *name=0, Qt::WindowFlags f=QFlag(0))
	TYSiteModelerFrame (LPTYSiteNode pSite, QWidget *parent=0, const char *name=0, Qt::WindowFlags f=QFlag(0))
virtual	~TYSiteModelerFrame ()
void	setProjet (LPTYProjet pProjet)
LPTYProjet	getProjet ()
void	setSite (LPTYSiteNode pSite)
LPTYSiteNode	getSite ()
bool	getShowCrbNiv ()
void	updateSelectMaillageBox ()
Public Member Functions inherited from TYModelerFrame
	TYModelerFrame (QWidget *parent=0, const char *name=0, Qt::WindowFlags f=Qt::SubWindow)
virtual	~TYModelerFrame ()
TYRenderWindowInteractor *	getView ()
TYOpenGLRenderer *	getRenderer ()
int	getCurrentView ()
TYOpenGLRenderer::RenderMode	getRenderMode ()
TYElementPicker *	getElementPicker ()
TYPickEditor *	getPickEditor ()
TYAbstractSceneEditor *	getCurrentEditor ()
TYCameraEditor *	getCameraEditor ()
QStatusBar *	statusBar ()
bool	getSnapGridActive ()
TYActionManager *	getActionManager ()
bool	getShowSources ()
bool	getShowGrid ()
bool	getWireframeOnMovingCamera ()
void	setElement (LPTYElement pElement)
LPTYElement	getElement ()
bool	isElementInCurrentCalcul ()
bool	isElementInCurrentProjet ()
bool	askForResetResultat ()
virtual bool	computeCurPos (int x, int y, float *pos)
void	setDefaultZCoord (float fDefaultZCoord)
	sets default Z coordinate for editors More...

Protected Member Functions
void	init ()
virtual float	getDefaultZCoord ()
	Returns default Z coordinate for editors This value will depend on the type of modeler and of the fixed altitude (or not) of the underlying site. More...
void	updateVisibilityElementSite ()
Protected Member Functions inherited from TYModelerFrame
virtual void	keyPressEvent (QKeyEvent *pEvent)
virtual void	keyReleaseEvent (QKeyEvent *pEvent)
virtual void	mouseMoveEvent (QMouseEvent *pEvent)
virtual void	wheelEvent (QWheelEvent *pEvent)
virtual void	resizeEvent (QResizeEvent *pEvent)
virtual void	focusInEvent (QFocusEvent *pEvent)
virtual void	showEvent (QShowEvent *pEvent)
virtual void	closeEvent (QCloseEvent *pEvent)
virtual void	enterEvent (QEvent *pEvent)
virtual void	leaveEvent (QEvent *pEvent)
void	setGridLinesActorsVisibility (bool showGridXY, bool showGridXZ, bool showGridZY)
OBox	getGlobalBoundingBox ()
void	addScreenShotBtn ()

Protected Attributes
LPTYProjet	_pProjet
	Un pointeur sur le projet a editer. More...
LPTYSiteNode	_pSite
	Un pointeur sur le site a editer. More...
QToolButton *	_pShowCrbNivBtn
	Bouton pour l'affichage des courbes de niveau. More...
bool	_showCrbNiv
	Indique si on affiche ou masque les courbes de niveau. More...
QToolButton *	_pShowAltimetrieBtn
	Bouton pour l'affichage de l'altimetrie. More...
bool	_showAltimetrie
	Indique si on affiche ou masque l'altimetrie. More...
QToolButton *	_pShowImageSiteBtn
	Bouton pour l'affichage de l'image de site. More...
bool	_showImageSite
	Indique si on affiche ou masque l'image de site. More...
QComboBox *	_pMaillageRenderModeBox
	Combo box pour le mode de rendu. More...
QComboBox *	_pSelectMaillageBox
	Combo box pour le choix du maillage. More...
TYEchelleEditor *	_pEchelleEditor
TYPointRefEditor *	_pPointRefEditor
TYOrientationEditor *	_pOrientationEditor
TYEmpriseEditor *	_pEmpriseEditor
TYCourbeNiveauEditor *	_pCourbeNiveauEditor
TYPlanEauEditor *	_pPlanEauEditor
TYTerrainEditor *	_pTerrainEditor
TYReseauTransportEditor *	_pReseauTransportEditor
TYEtageEditor *	_pEtageEditor
TYSilosEditor *	_pSilosEditor
TYCoursEauEditor *	_pCoursEauEditor
TYSourceEditor *	_pSourceEditor
TYPointCalculEditor *	_pPointCalculEditor
TYRectangularMaillageEditor *	_pRectangularMaillageEditor
TYLinearMaillageEditor *	_pLinearMaillageEditor
TYVerticalMaillageEditor *	_pVerticalMaillageEditor
TYBoundaryNoiseMapEditor *	_pBoundaryNoiseMapEditor
Protected Attributes inherited from TYModelerFrame
TYCameraEditor *	_pCameraEditor
	Manages the camera. More...
QBoxLayout *	_pCtrlLayout
	The layout where buttons, etc., are located. More...
QComboBox *	_pViewTypeBox
	Combo box for selecting the current camera. More...
TYRenderWindowInteractor *	_pView
	The graphics window. More...
int	_curViewType
	The type of the current view. More...
bool	_editorModeAccepted
	Indicates if the editing mode has been processed. More...
TYAbstractSceneEditor *	_pCurrentEditor
	The current editor. More...
TYPickEditor *	_pPickEditor
	Manages the context menu. More...
OGLCamera *	_pOGLCameras [NbOfViews]
	Cameras for each type of view. More...
float	_gridStep
	Grid step. More...
float	_gridMagnStep
	Magnetic grid step. More...
float	_gridDimX
	Grid dimension in X. More...
float	_gridDimY
	Grid dimension in Y. More...
QToolButton *	_pSetCameraCoordinatesBtn
	Button to specify camera coordinates. More...
QToolButton *	_pScreenShotBtn
	Button for saving a screenshot. More...
QToolButton *	_pCopyBtn
	Button for taking a screenshot. More...
LPTYElement	_pElement
	A pointer to the element to edit. More...
float	_defaultZCoord
	Default Z coordinate for editors. More...

Static Protected Attributes
static int	_nbInstance = 0
	Nombre d'instance de type TYSiteModelerFrame. More...

Additional Inherited Members
Signals inherited from TYModelerFrame
void	aboutToClose ()
void	viewTypeChanged (int)
void	editorModeChanged (int mode)
void	eltModified (LPTYElement pElt)
void	mouseEnter ()
void	mouseLeave ()
void	frameResized ()

Detailed Description

Classe Modeler specialisee pour l'edition des sites.

Definition at line 38 of file TYSiteModelerFrame.h.

Member Enumeration Documentation

RenderMaillageMode

enum TYSiteModelerFrame::RenderMaillageMode

Les modes de rendu du maillage.

Enumerator
Surface
Lines
Mixed
NbOfRenderMaillageMode

Definition at line 46 of file TYSiteModelerFrame.h.

SiteModelerMode

enum TYSiteModelerFrame::SiteModelerMode

Les differents modes d'edition d'un site.

Enumerator
EchelleMode
PointRefMode
OrientationMode
EmpriseMode
CourbeNiveauMode
TerrainMode
VegetationMode
PlanEauMode
CoursEauMode
SrcPonctMode
RecepteurMode
RouteMode
ReseauTransportMode
EtageMode
MachineMode
BatimentMode
EcranMode
SiteMode
MaillageRectMode
MaillageLinearMode
MaillageVerticalMode
BoundaryNoiseMapMode
PointsCtrlMode
NbOfSiteModelerMode
SilosMode

Definition at line 113 of file TYSiteModelerFrame.h.

Constructor & Destructor Documentation

TYSiteModelerFrame() [1/3]

TYSiteModelerFrame::TYSiteModelerFrame	(	QWidget *	parent = 0,
		const char *	name = 0,
		Qt::WindowFlags	f = Qt::SubWindow
	)

Constructeur par defaut.

Definition at line 66 of file TYSiteModelerFrame.cpp.

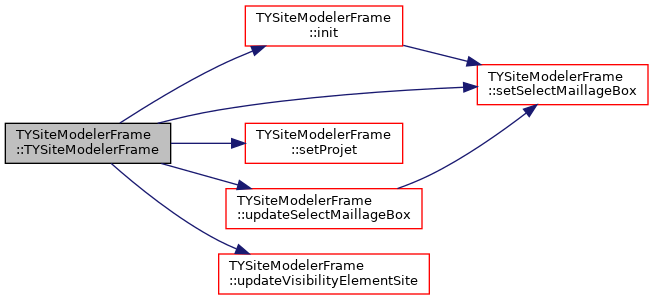

Here is the call graph for this function:

TYSiteModelerFrame() [2/3]

TYSiteModelerFrame::TYSiteModelerFrame	(	LPTYProjet	pProjet,
		QWidget *	parent = 0,
		const char *	name = 0,
		Qt::WindowFlags	f = QFlag(0)
	)

Constructeur a partir d'un projet.

Definition at line 76 of file TYSiteModelerFrame.cpp.

Here is the call graph for this function:

TYSiteModelerFrame() [3/3]

TYSiteModelerFrame::TYSiteModelerFrame	(	LPTYSiteNode	pSite,
		QWidget *	parent = 0,
		const char *	name = 0,
		Qt::WindowFlags	f = QFlag(0)
	)

Constructeur a partir d'un site.

Definition at line 89 of file TYSiteModelerFrame.cpp.

Here is the call graph for this function:

~TYSiteModelerFrame()

TYSiteModelerFrame::~TYSiteModelerFrame ( )

virtual

Destructeur.

Definition at line 199 of file TYSiteModelerFrame.cpp.

Member Function Documentation

close

bool TYSiteModelerFrame::close ( )

virtualslot

Definition at line 230 of file TYSiteModelerFrame.cpp.

Here is the call graph for this function:

enableAltimetrieButton

void TYSiteModelerFrame::enableAltimetrieButton ( bool  enable )

slot

Active ou désactive le bouton d'affichage de l'altimetrie.

Definition at line 472 of file TYSiteModelerFrame.cpp.

Here is the caller graph for this function:

getDefaultZCoord()

float TYSiteModelerFrame::getDefaultZCoord ( )

protectedvirtual

Returns default Z coordinate for editors This value will depend on the type of modeler and of the fixed altitude (or not) of the underlying site.

Returns

Reimplemented from TYModelerFrame.

Definition at line 566 of file TYSiteModelerFrame.cpp.

Here is the call graph for this function:

getMaillageRenderMode

int TYSiteModelerFrame::getMaillageRenderMode ( )

slot

Renvoie l'indice sélectionné dans la combobox _pMaillageRenderModeBox

Definition at line 740 of file TYSiteModelerFrame.cpp.

getProjet()

LPTYProjet TYSiteModelerFrame::getProjet ( )

inline

Set/Get du projet a editer. Dans ce cas le site sera celui qui est associe au projet.

Definition at line 82 of file TYSiteModelerFrame.h.

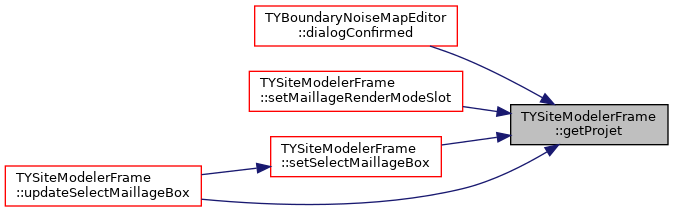

Here is the caller graph for this function:

getShowCrbNiv()

bool TYSiteModelerFrame::getShowCrbNiv ( )

inline

Indique si on affiche ou pas les courbes de niveau.

Definition at line 102 of file TYSiteModelerFrame.h.

getSite()

LPTYSiteNode TYSiteModelerFrame::getSite ( )

inline

Set/Get du site a editer.

Definition at line 94 of file TYSiteModelerFrame.h.

Here is the caller graph for this function:

init()

void TYSiteModelerFrame::init ( )

protected

Initialise le site modeler, appeler par les constructeurs.

Definition at line 102 of file TYSiteModelerFrame.cpp.

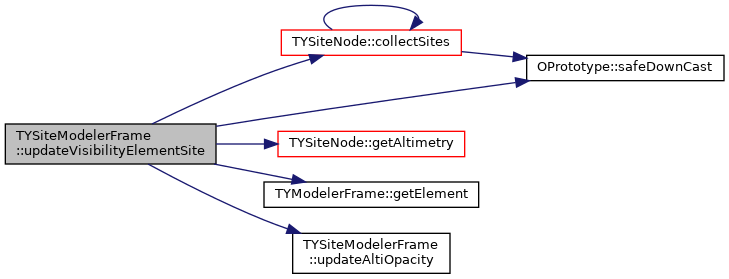

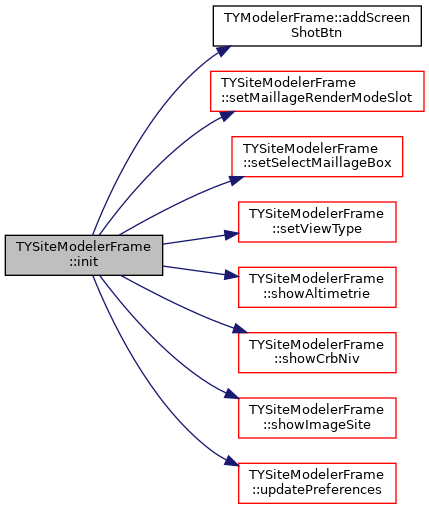

Here is the call graph for this function:

Here is the caller graph for this function:

setEditorMode

void TYSiteModelerFrame::setEditorMode ( int  mode )

virtualslot

Definition at line 365 of file TYSiteModelerFrame.cpp.

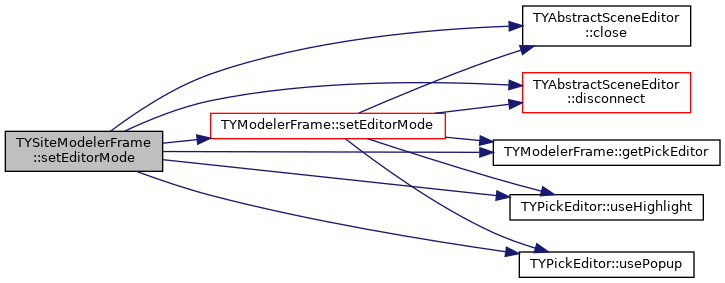

Here is the call graph for this function:

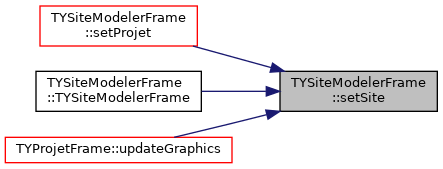

Here is the caller graph for this function:

setMaillageRenderModeSlot

void TYSiteModelerFrame::setMaillageRenderModeSlot ( )

virtualslot

Selectionne le mode de rendu du maillage.

Definition at line 297 of file TYSiteModelerFrame.cpp.

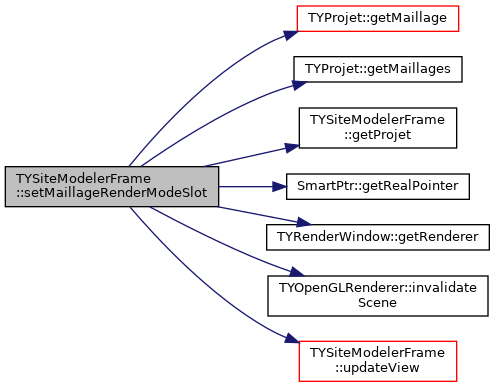

Here is the call graph for this function:

Here is the caller graph for this function:

setProjet()

void TYSiteModelerFrame::setProjet

(

LPTYProjet

pProjet

)

Set/Get du projet a editer. Dans ce cas le site sera celui qui est associe au projet.

Definition at line 277 of file TYSiteModelerFrame.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

setSelectMaillageBox

void TYSiteModelerFrame::setSelectMaillageBox ( const QString &  name )

virtualslot

Selectionne le maillage.

Definition at line 693 of file TYSiteModelerFrame.cpp.

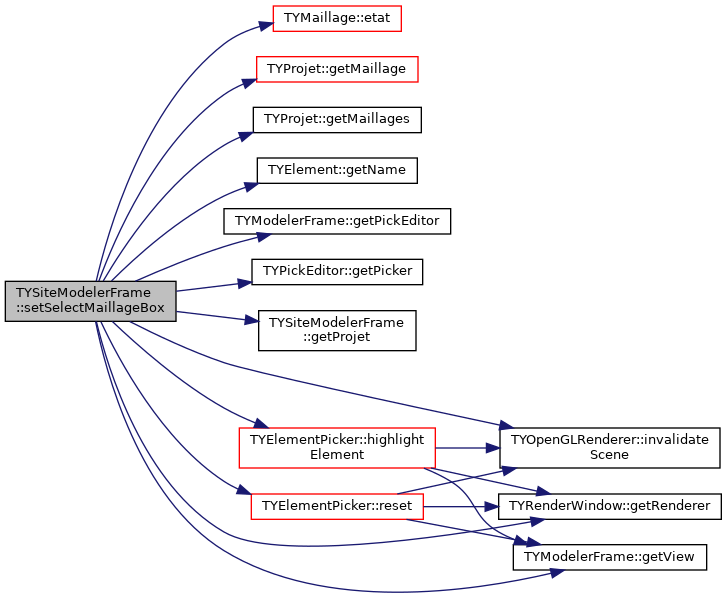

Here is the call graph for this function:

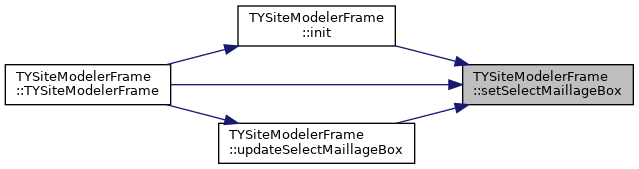

Here is the caller graph for this function:

setSite()

void TYSiteModelerFrame::setSite

(

LPTYSiteNode

pSite

)

Set/Get du site a editer.

Definition at line 235 of file TYSiteModelerFrame.cpp.

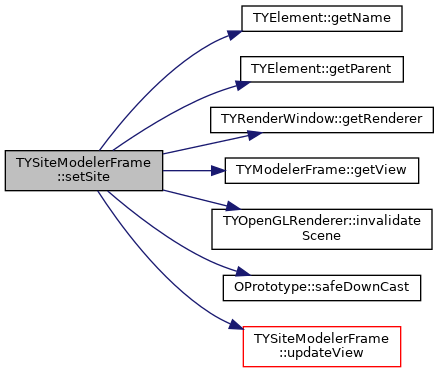

Here is the call graph for this function:

Here is the caller graph for this function:

setViewType

void TYSiteModelerFrame::setViewType ( int  view )

virtualslot

Definition at line 292 of file TYSiteModelerFrame.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

showAltimetrie

void TYSiteModelerFrame::showAltimetrie ( bool  show )

slot

Affiche ou masque l'altimetrie. Fait un updateView().

Definition at line 477 of file TYSiteModelerFrame.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

showCrbNiv

void TYSiteModelerFrame::showCrbNiv ( bool  show )

slot

Affiche ou masque les courbes de niveau. Fait un updateView().

Definition at line 456 of file TYSiteModelerFrame.cpp.

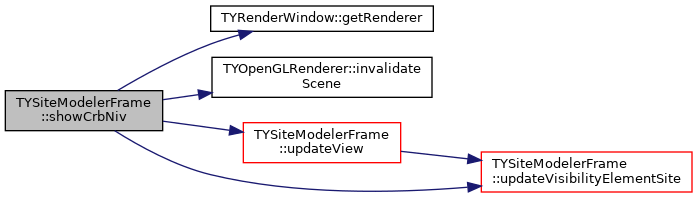

Here is the call graph for this function:

Here is the caller graph for this function:

showImageSite

void TYSiteModelerFrame::showImageSite ( bool  show )

slot

Affiche ou masque l'image associee au site. Fait un updateView().

Definition at line 493 of file TYSiteModelerFrame.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

updateAltiOpacity

void TYSiteModelerFrame::updateAltiOpacity ( int  view = -1 )

slot

Mets a jour l'opacite de la transparence en fonction du type de la vue courante.

Definition at line 558 of file TYSiteModelerFrame.cpp.

Here is the caller graph for this function:

updatePreferences

void TYSiteModelerFrame::updatePreferences ( )

virtualslot

Definition at line 579 of file TYSiteModelerFrame.cpp.

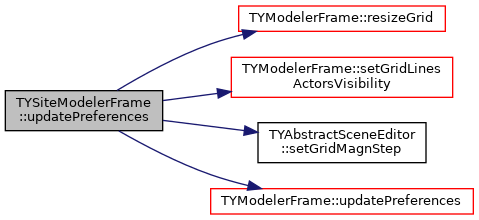

Here is the call graph for this function:

Here is the caller graph for this function:

updateSelectMaillageBox()

void TYSiteModelerFrame::updateSelectMaillageBox

(

)

Mise a jour de la comboBox des maillages disponibles

Definition at line 650 of file TYSiteModelerFrame.cpp.

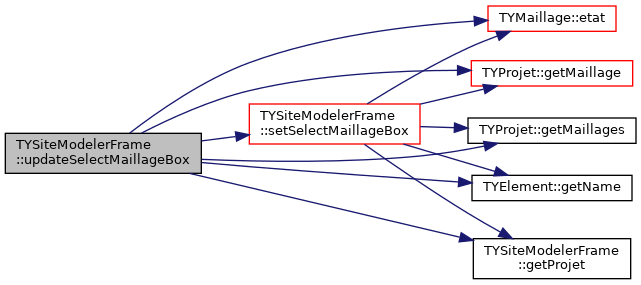

Here is the call graph for this function:

Here is the caller graph for this function:

updateView

void TYSiteModelerFrame::updateView ( bool  clipping = true, bool  axesAndGrid = true  )

virtualslot

Definition at line 449 of file TYSiteModelerFrame.cpp.

Here is the call graph for this function:

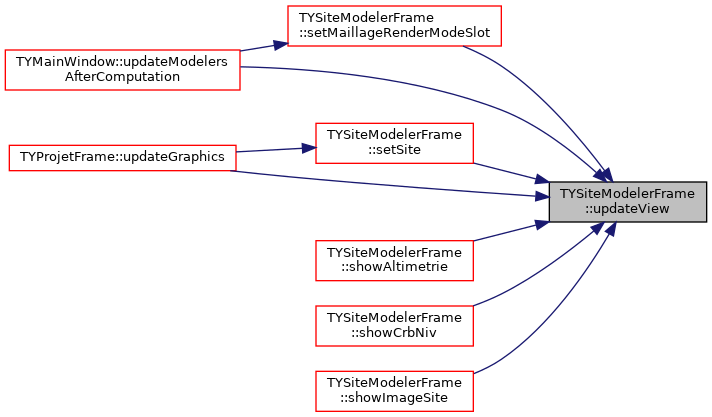

Here is the caller graph for this function:

updateVisibilityElementSite()

void TYSiteModelerFrame::updateVisibilityElementSite ( )

protected

Affiche ou masque les elements de site (Courbes de niveau, altimetrie, et image de site) sans faire de mise a jour de la vue.

Definition at line 504 of file TYSiteModelerFrame.cpp.

Here is the call graph for this function:

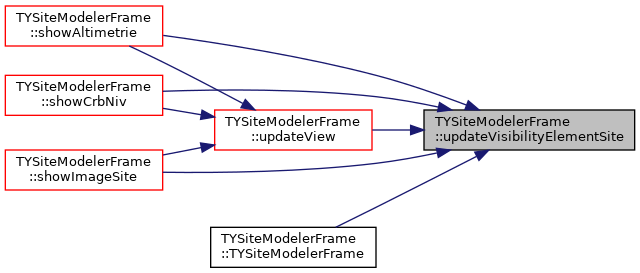

Here is the caller graph for this function:

Member Data Documentation

_nbInstance

int TYSiteModelerFrame::_nbInstance = 0

staticprotected

Nombre d'instance de type TYSiteModelerFrame.

Definition at line 255 of file TYSiteModelerFrame.h.

_pBoundaryNoiseMapEditor

TYBoundaryNoiseMapEditor* TYSiteModelerFrame::_pBoundaryNoiseMapEditor

protected

Definition at line 252 of file TYSiteModelerFrame.h.

_pCourbeNiveauEditor

TYCourbeNiveauEditor* TYSiteModelerFrame::_pCourbeNiveauEditor

protected

Definition at line 237 of file TYSiteModelerFrame.h.

_pCoursEauEditor

TYCoursEauEditor* TYSiteModelerFrame::_pCoursEauEditor

protected

Definition at line 246 of file TYSiteModelerFrame.h.

_pEchelleEditor

TYEchelleEditor* TYSiteModelerFrame::_pEchelleEditor

protected

Definition at line 233 of file TYSiteModelerFrame.h.

_pEmpriseEditor

TYEmpriseEditor* TYSiteModelerFrame::_pEmpriseEditor

protected

Definition at line 236 of file TYSiteModelerFrame.h.

_pEtageEditor

TYEtageEditor* TYSiteModelerFrame::_pEtageEditor

protected

Definition at line 244 of file TYSiteModelerFrame.h.

_pLinearMaillageEditor

TYLinearMaillageEditor* TYSiteModelerFrame::_pLinearMaillageEditor

protected

Definition at line 250 of file TYSiteModelerFrame.h.

_pMaillageRenderModeBox

QComboBox* TYSiteModelerFrame::_pMaillageRenderModeBox

protected

Combo box pour le mode de rendu.

Definition at line 227 of file TYSiteModelerFrame.h.

_pOrientationEditor

TYOrientationEditor* TYSiteModelerFrame::_pOrientationEditor

protected

Definition at line 235 of file TYSiteModelerFrame.h.

_pPlanEauEditor

TYPlanEauEditor* TYSiteModelerFrame::_pPlanEauEditor

protected

Definition at line 238 of file TYSiteModelerFrame.h.

_pPointCalculEditor

TYPointCalculEditor* TYSiteModelerFrame::_pPointCalculEditor

protected

Definition at line 248 of file TYSiteModelerFrame.h.

_pPointRefEditor

TYPointRefEditor* TYSiteModelerFrame::_pPointRefEditor

protected

Definition at line 234 of file TYSiteModelerFrame.h.

_pProjet

LPTYProjet TYSiteModelerFrame::_pProjet

protected

Un pointeur sur le projet a editer.

Definition at line 207 of file TYSiteModelerFrame.h.

_pRectangularMaillageEditor

TYRectangularMaillageEditor* TYSiteModelerFrame::_pRectangularMaillageEditor

protected

Definition at line 249 of file TYSiteModelerFrame.h.

_pReseauTransportEditor

TYReseauTransportEditor* TYSiteModelerFrame::_pReseauTransportEditor

protected

Definition at line 243 of file TYSiteModelerFrame.h.

_pSelectMaillageBox

QComboBox* TYSiteModelerFrame::_pSelectMaillageBox

protected

Combo box pour le choix du maillage.

Definition at line 230 of file TYSiteModelerFrame.h.

_pShowAltimetrieBtn

QToolButton* TYSiteModelerFrame::_pShowAltimetrieBtn

protected

Bouton pour l'affichage de l'altimetrie.

Definition at line 217 of file TYSiteModelerFrame.h.

_pShowCrbNivBtn

QToolButton* TYSiteModelerFrame::_pShowCrbNivBtn

protected

Bouton pour l'affichage des courbes de niveau.

Definition at line 212 of file TYSiteModelerFrame.h.

_pShowImageSiteBtn

QToolButton* TYSiteModelerFrame::_pShowImageSiteBtn

protected

Bouton pour l'affichage de l'image de site.

Definition at line 222 of file TYSiteModelerFrame.h.

_pSilosEditor

TYSilosEditor* TYSiteModelerFrame::_pSilosEditor

protected

Definition at line 245 of file TYSiteModelerFrame.h.

_pSite

LPTYSiteNode TYSiteModelerFrame::_pSite

protected

Un pointeur sur le site a editer.

Definition at line 209 of file TYSiteModelerFrame.h.

_pSourceEditor

TYSourceEditor* TYSiteModelerFrame::_pSourceEditor

protected

Definition at line 247 of file TYSiteModelerFrame.h.

_pTerrainEditor

TYTerrainEditor* TYSiteModelerFrame::_pTerrainEditor

protected

Definition at line 239 of file TYSiteModelerFrame.h.

_pVerticalMaillageEditor

TYVerticalMaillageEditor* TYSiteModelerFrame::_pVerticalMaillageEditor

protected

Definition at line 251 of file TYSiteModelerFrame.h.

_showAltimetrie

bool TYSiteModelerFrame::_showAltimetrie

protected

Indique si on affiche ou masque l'altimetrie.

Definition at line 219 of file TYSiteModelerFrame.h.

_showCrbNiv

bool TYSiteModelerFrame::_showCrbNiv

protected

Indique si on affiche ou masque les courbes de niveau.

Definition at line 214 of file TYSiteModelerFrame.h.

_showImageSite

bool TYSiteModelerFrame::_showImageSite

protected

Indique si on affiche ou masque l'image de site.

Definition at line 224 of file TYSiteModelerFrame.h.

---

The documentation for this class was generated from the following files:

• /home/docs/checkouts/readthedocs.org/user_builds/code-tympan/checkouts/issue_952/Tympan/gui/app/TYSiteModelerFrame.h
• /home/docs/checkouts/readthedocs.org/user_builds/code-tympan/checkouts/issue_952/Tympan/gui/app/TYSiteModelerFrame.cpp
