TYAcousticPathFinder Class Reference

Build the acoustic path for the 9613 family solvers. More...

#include <TYAcousticPathFinder.h>

Collaboration diagram for TYAcousticPathFinder:

Public Member Functions
	TYAcousticPathFinder (TYSolver &solver)
	Constructor. More...
virtual	~TYAcousticPathFinder ()
	Destructor. More...
virtual void	computePath (const std::deque< TYSIntersection > &tabIntersect, const TYTrajet &trajet, TabPoint3D &ptsTop, TabPoint3D &ptsLeft, TabPoint3D &ptsRight)
	Compute a path between a source and a receptor. The receptor is not included in the path. More...
virtual void	init ()
	Initialize the class parameters. More...

Private Member Functions
	FRIEND_TEST (test_TYAcousticPathFinder, computePath)
bool	computeParcoursLateraux (const std::deque< TYSIntersection > &tabIntersect, const OSegment3D &rayon, const bool &dessus, TabPoint3D &ptsLeft, TabPoint3D &ptsRight) const

Private Attributes
TYSolver &	_solver
	Reference to the solver. More...
bool	_bCalcTrajetHorizontaux
	Boolean to compute or not the horizontal trajectories. More...

Detailed Description

Build the acoustic path for the 9613 family solvers.

Definition at line 29 of file TYAcousticPathFinder.h.

Constructor & Destructor Documentation

TYAcousticPathFinder()

TYAcousticPathFinder::TYAcousticPathFinder

(

TYSolver &

solver

)

Constructor.

Definition at line 21 of file TYAcousticPathFinder.cpp.

~TYAcousticPathFinder()

TYAcousticPathFinder::~TYAcousticPathFinder ( )

virtual

Destructor.

Definition at line 25 of file TYAcousticPathFinder.cpp.

Member Function Documentation

computeParcoursLateraux()

bool TYAcousticPathFinder::computeParcoursLateraux ( const std::deque< TYSIntersection > &  tabIntersect, const OSegment3D &  rayon, const bool &  dessus, TabPoint3D &  ptsLeft, TabPoint3D &  ptsRight  ) const

private

Definition at line 51 of file TYAcousticPathFinder.cpp.

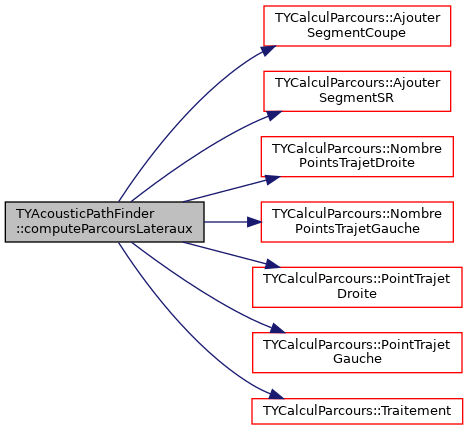

Here is the call graph for this function:

Here is the caller graph for this function:

computePath()

void TYAcousticPathFinder::computePath ( const std::deque< TYSIntersection > &  tabIntersect, const TYTrajet &  trajet, TabPoint3D &  ptsTop, TabPoint3D &  ptsLeft, TabPoint3D &  ptsRight  )

virtual

Compute a path between a source and a receptor. The receptor is not included in the path.

Parameters

tabIntersect	Array of intersections
trajet	Trajectories
ptsTop	Path (array of points) in case of face visualization (_bCalcTrajetHorizontaux false)
ptsLeft	Path (array of points) in case of top visualization (_bCalcTrajetHorizontaux true)
ptsRight	Path (array of points) in case of top visualization (_bCalcTrajetHorizontaux true)

Definition at line 32 of file TYAcousticPathFinder.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

FRIEND_TEST()

TYAcousticPathFinder::FRIEND_TEST ( test_TYAcousticPathFinder  , computePath    )

private

init()

void TYAcousticPathFinder::init ( )

virtual

Initialize the class parameters.

Definition at line 27 of file TYAcousticPathFinder.cpp.

Here is the call graph for this function:

Member Data Documentation

_bCalcTrajetHorizontaux

bool TYAcousticPathFinder::_bCalcTrajetHorizontaux

private

Boolean to compute or not the horizontal trajectories.

Definition at line 59 of file TYAcousticPathFinder.h.

_solver

TYSolver& TYAcousticPathFinder::_solver

private

Reference to the solver.

Definition at line 53 of file TYAcousticPathFinder.h.

---

The documentation for this class was generated from the following files:

• /home/docs/checkouts/readthedocs.org/user_builds/code-tympan/checkouts/issue_894/Tympan/solvers/9613/TYAcousticPathFinder.h
• /home/docs/checkouts/readthedocs.org/user_builds/code-tympan/checkouts/issue_894/Tympan/solvers/9613/TYAcousticPathFinder.cpp
