Task of a thread collection for Tympan. More...

#include <TYTask.h>

Inheritance diagram for TYTask:

[legend]

Collaboration diagram for TYTask:

[legend]

Public Member Functions
	TYTask (const tympan::nodes_pool_t &nodes, const tympan::triangle_pool_t &triangles, const tympan::material_pool_t &materials, int nNbTrajets)
	Constructor. More...

	~TYTask ()
	Destructor. More...

void	main ()
	Main procedure to run the task. More...

Public Member Functions inherited from OTask
	OTask ()
	Default constructor. More...

virtual	~OTask ()
	Destructor : waits for the end of the task to destroy it. More...

bool	isRunning () const
	Return true if the task is running, false otherwise. More...

bool	isCompleted () const
	Return true if the task is completed, false otherwise. More...

bool	isCanceled () const
	Return true if the task has been cancelled, false otherwise. More...

void	reset ()
	Reset the task status (_running=false and _completed=false) More...

Public Member Functions inherited from IRefCount
	IRefCount ()

virtual	~IRefCount ()

virtual int	incRef ()

virtual int	decRef ()

int	getRefCount () const

Protected Attributes
std::deque< TYSIntersection >	_tabIntersect
	Array of intersections. More...

Protected Attributes inherited from OTask
bool	_running
	Running flag. More...

bool	_completed
	Completed flag. More...

bool	_canceled
	Cancel flag. More...

Protected Attributes inherited from IRefCount
int	m_refCount
	The reference counter. More...

Private Member Functions
virtual void	getRayonFromTrajet (OSegment3D &rayon)=0
	Build a ray from the source->receptor Trajet. More...

virtual void	selectFaces (OSegment3D &rayon)=0
	Delegate to solver the build of the intersecting faces between the scene and the ray. More...

virtual void	computePath (TabPoint3D &ptsTop, TabPoint3D &ptsLeft, TabPoint3D &ptsRight)=0
	Delegate to solver the computation of the intersecting top, left and right points between the scene and the ray. More...

virtual void	launchAcousticComputation (TabPoint3D &ptsTop, TabPoint3D &ptsLeft, TabPoint3D &ptsRight)=0
	Delegate to solver the acoustic computation for this task. More...

Private Attributes
unsigned int	_nNbTrajets
	Path number. More...

const tympan::nodes_pool_t &	_nodes

const tympan::triangle_pool_t &	_triangles

const tympan::material_pool_t &	_materials

Detailed Description

Task of a thread collection for Tympan.

Definition at line 29 of file TYTask.h.

Constructor & Destructor Documentation

◆ TYTask()

TYTask::TYTask	(	const tympan::nodes_pool_t &	nodes,
		const tympan::triangle_pool_t &	triangles,
		const tympan::material_pool_t &	materials,
		int	nNbTrajets
	)

Constructor.

Parameters

nodes	Nodes
triangles	Triangles
materials	Materials
nNbTrajets	Path number

Definition at line 20 of file TYTask.cpp.

◆ ~TYTask()

TYTask::~TYTask ( )

Destructor.

Definition at line 26 of file TYTask.cpp.

Member Function Documentation

◆ computePath()

virtual void TYTask::computePath	(	TabPoint3D &	ptsTop,
		TabPoint3D &	ptsLeft,
		TabPoint3D &	ptsRight
	)

privatepure virtual

Delegate to solver the computation of the intersecting top, left and right points between the scene and the ray.

Parameters

[out]	ptsTop	Array of points composing the intersection between plane EV and the scene false)
[out]	ptsLeft	Array of points composing the intersection betwwen plane EL, on the left, and the scene
[out]	ptsRight	Array of points composing the intersection betwwen plane EL, on the right, and the scene

Implemented in TYTaskDefaultSolver, and TYTask9613Solver.

Here is the caller graph for this function:

◆ getRayonFromTrajet()

virtual void TYTask::getRayonFromTrajet ( OSegment3D & rayon )

privatepure virtual

Build a ray from the source->receptor Trajet.

Parameters

[out] rayon The ray built

Implemented in TYTaskDefaultSolver, and TYTask9613Solver.

Here is the caller graph for this function:

◆ launchAcousticComputation()

virtual void TYTask::launchAcousticComputation	(	TabPoint3D &	ptsTop,
		TabPoint3D &	ptsLeft,
		TabPoint3D &	ptsRight
	)

privatepure virtual

Delegate to solver the acoustic computation for this task.

Parameters

ptsTop	[in] Top points
ptsLeft	[in] Left points
ptsRight	[in] Right points

Implemented in TYTaskDefaultSolver, and TYTask9613Solver.

Here is the caller graph for this function:

◆ main()

void TYTask::main ( void )

virtual

Main procedure to run the task.

Implements OTask.

Definition at line 28 of file TYTask.cpp.

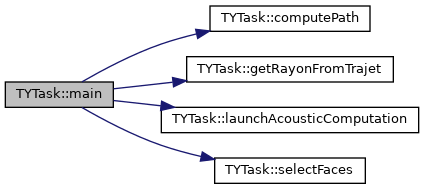

Here is the call graph for this function:

◆ selectFaces()

virtual void TYTask::selectFaces ( OSegment3D & rayon )

privatepure virtual

Delegate to solver the build of the intersecting faces between the scene and the ray.

Parameters

rayon The considered ray

Implemented in TYTaskDefaultSolver, and TYTask9613Solver.

Here is the caller graph for this function:

Member Data Documentation

◆ _materials

const tympan::material_pool_t& TYTask::_materials

private

Definition at line 88 of file TYTask.h.

◆ _nNbTrajets

unsigned int TYTask::_nNbTrajets

private

Path number.

Definition at line 84 of file TYTask.h.

◆ _nodes

const tympan::nodes_pool_t& TYTask::_nodes

private

Definition at line 86 of file TYTask.h.

◆ _tabIntersect

std::deque<TYSIntersection> TYTask::_tabIntersect

protected

Array of intersections.

Definition at line 81 of file TYTask.h.

◆ _triangles

const tympan::triangle_pool_t& TYTask::_triangles

private

Definition at line 87 of file TYTask.h.

The documentation for this class was generated from the following files:

/home/docs/checkouts/readthedocs.org/user_builds/code-tympan/checkouts/issue_647/Tympan/solvers/9613/TYTask.h
/home/docs/checkouts/readthedocs.org/user_builds/code-tympan/checkouts/issue_647/Tympan/solvers/9613/TYTask.cpp
