Holds the responsability of the MOCK_IGN mode. This mode si reserved for developer when the IGN web services are down or not reliable. The developer has to : More...
#include <TYIGNGeoPfMocker.h>
Public Member Functions | |
| bool | mockGeoPf () |
| bool | setLandtakeCoordinates () |
| bool | setImageProperties () |
| bool | loadLevelCurves () |
Detailed Description
Holds the responsability of the MOCK_IGN mode. This mode si reserved for developer when the IGN web services are down or not reliable. The developer has to :
- set option TYMPAN_MOCK_IGN to on in tympan-build-options.cmake
- put the following files in the folder "c:/projects/tympan/issues/530 - Mock IGN"
- image.png, the background image
- level_curves.xml, the file sent by IGN web service containing level curves in XML format
- landtake_coordinates.txt, the coordinates of the selected zone in EPSG:3857
- img_props.txt, this text file holds image width on the first line and scale factor on the second
The resources must be consistent and have to be built when IGN Geoplatform is on.
Definition at line 33 of file TYIGNGeoPfMocker.h.
Member Function Documentation
◆ loadLevelCurves()
| bool TYIGNGeoPfMocker::loadLevelCurves | ( | ) |
Definition at line 85 of file TYIGNGeoPfMocker.cpp.
Here is the call graph for this function:
Here is the caller graph for this function:

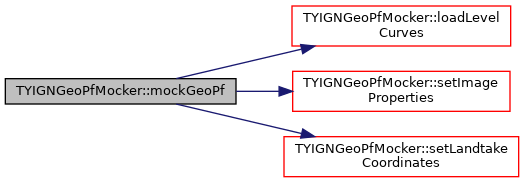

◆ mockGeoPf()
| bool TYIGNGeoPfMocker::mockGeoPf | ( | ) |
◆ setImageProperties()
| bool TYIGNGeoPfMocker::setImageProperties | ( | ) |
Definition at line 56 of file TYIGNGeoPfMocker.cpp.

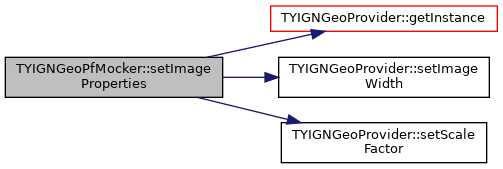

Here is the call graph for this function:
Here is the caller graph for this function:
◆ setLandtakeCoordinates()
| bool TYIGNGeoPfMocker::setLandtakeCoordinates | ( | ) |
Definition at line 32 of file TYIGNGeoPfMocker.cpp.
Here is the call graph for this function:
Here is the caller graph for this function:
The documentation for this class was generated from the following files:
- /home/docs/checkouts/readthedocs.org/user_builds/code-tympan/checkouts/issue_647/Tympan/gis/TYIGNGeoPfMocker.h
- /home/docs/checkouts/readthedocs.org/user_builds/code-tympan/checkouts/issue_647/Tympan/gis/TYIGNGeoPfMocker.cpp
