OGLMesh Class Reference

#include <OGLMesh.h>

Inheritance diagram for OGLMesh:

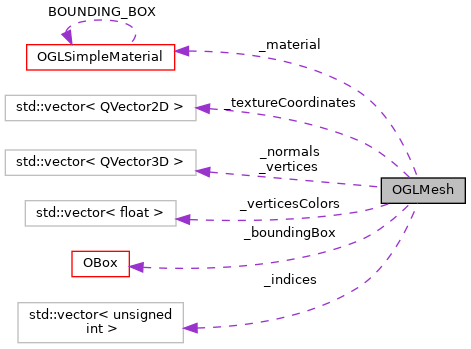

Collaboration diagram for OGLMesh:

Public Member Functions
const std::vector< QVector3D > &	vertices () const
const std::vector< QVector2D > &	textureCoordinates () const
const std::vector< float > &	verticesColors () const
const std::vector< QVector3D > &	normals () const
const std::vector< unsigned int > &	indices () const
void	setMaterial (const OGLSimpleMaterial &material)
OGLSimpleMaterial &	material ()
const OGLSimpleMaterial &	material () const
const OGLPrivimitiveType	primitiveType () const
const OBox	boundingBox () const

Protected Member Functions
void	recomputeBoundingBox ()

Protected Attributes
std::vector< QVector3D >	_vertices
std::vector< float >	_verticesColors
std::vector< QVector3D >	_normals
std::vector< QVector2D >	_textureCoordinates
std::vector< unsigned int >	_indices
OGLSimpleMaterial	_material
OGLPrivimitiveType	_primitiveType
OBox	_boundingBox

Detailed Description

Store geometry and visual material of a displayed object. A mesh can be bound to a single material. Split geometry into several meshes if you need several materials.

Definition at line 41 of file OGLMesh.h.

Member Function Documentation

boundingBox()

const OBox OGLMesh::boundingBox ( ) const

inline

Get the boundingBox

Definition at line 95 of file OGLMesh.h.

Here is the caller graph for this function:

indices()

const std::vector< unsigned int > & OGLMesh::indices

(

)

const

Returns a dense array of primitives indices.

Definition at line 40 of file OGLMesh.cpp.

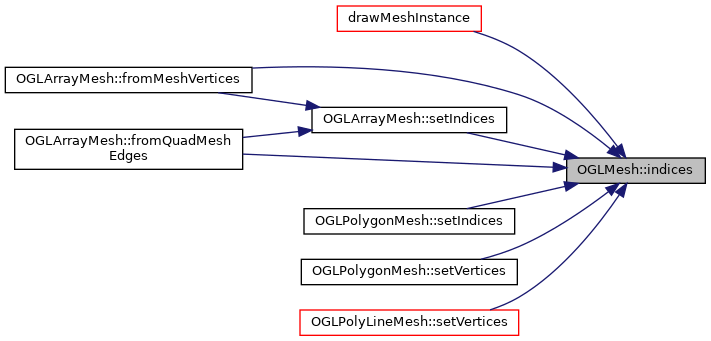

Here is the caller graph for this function:

material() [1/2]

OGLSimpleMaterial & OGLMesh::material

(

)

Get the material of this mesh.

Definition at line 50 of file OGLMesh.cpp.

Here is the caller graph for this function:

material() [2/2]

const OGLSimpleMaterial & OGLMesh::material

(

)

const

Get the material of this mesh.

Definition at line 54 of file OGLMesh.cpp.

normals()

const std::vector< QVector3D > & OGLMesh::normals

(

)

const

Returns a dense array of vertices normals.

Definition at line 30 of file OGLMesh.cpp.

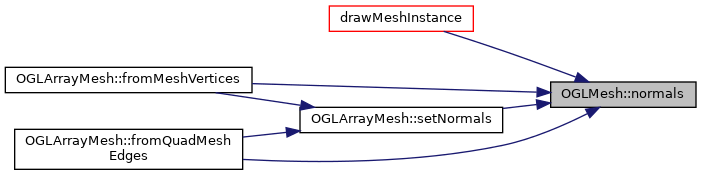

Here is the caller graph for this function:

primitiveType()

const OGLPrivimitiveType OGLMesh::primitiveType ( ) const

inline

Get the primitive type used to interpret indices.

Definition at line 87 of file OGLMesh.h.

Here is the caller graph for this function:

recomputeBoundingBox()

void OGLMesh::recomputeBoundingBox ( )

protected

Definition at line 59 of file OGLMesh.cpp.

Here is the call graph for this function:

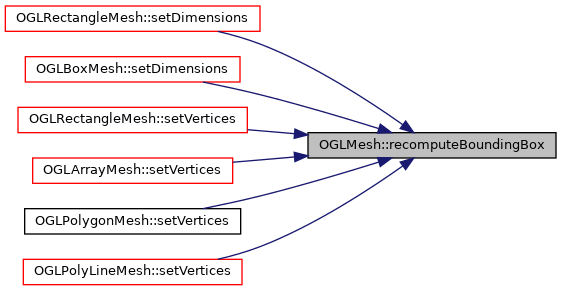

Here is the caller graph for this function:

setMaterial()

void OGLMesh::setMaterial

(

const OGLSimpleMaterial &

material

)

Set the material of this mesh.

Definition at line 45 of file OGLMesh.cpp.

Here is the call graph for this function:

textureCoordinates()

const std::vector< QVector2D > & OGLMesh::textureCoordinates

(

)

const

Returns a dense array of vertices positions.

Definition at line 35 of file OGLMesh.cpp.

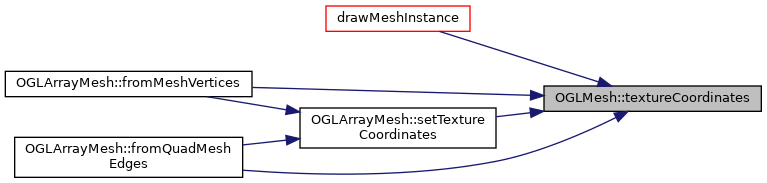

Here is the caller graph for this function:

vertices()

const std::vector< QVector3D > & OGLMesh::vertices

(

)

const

Returns a dense array of vertices positions.

Definition at line 20 of file OGLMesh.cpp.

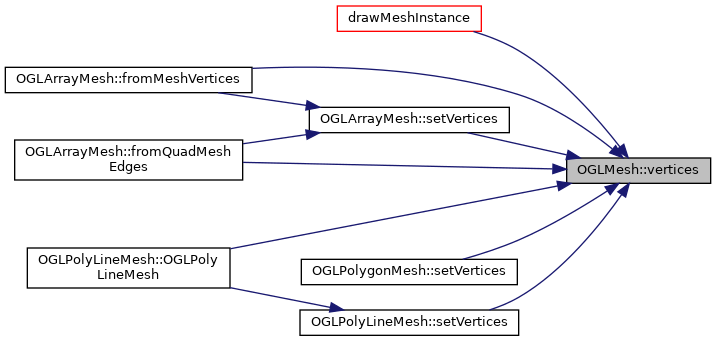

Here is the caller graph for this function:

verticesColors()

const std::vector< float > & OGLMesh::verticesColors

(

)

const

Returns a dense array of vertices positions.

Definition at line 25 of file OGLMesh.cpp.

Here is the caller graph for this function:

Member Data Documentation

_boundingBox

OBox OGLMesh::_boundingBox

protected

Definition at line 108 of file OGLMesh.h.

_indices

std::vector<unsigned int> OGLMesh::_indices

protected

Definition at line 105 of file OGLMesh.h.

_material

OGLSimpleMaterial OGLMesh::_material

protected

Definition at line 106 of file OGLMesh.h.

_normals

std::vector<QVector3D> OGLMesh::_normals

protected

Definition at line 103 of file OGLMesh.h.

_primitiveType

OGLPrivimitiveType OGLMesh::_primitiveType

protected

Definition at line 107 of file OGLMesh.h.

_textureCoordinates

std::vector<QVector2D> OGLMesh::_textureCoordinates

protected

Definition at line 104 of file OGLMesh.h.

_vertices

std::vector<QVector3D> OGLMesh::_vertices

protected

Definition at line 101 of file OGLMesh.h.

_verticesColors

std::vector<float> OGLMesh::_verticesColors

protected

Definition at line 102 of file OGLMesh.h.

---

The documentation for this class was generated from the following files:

• /home/docs/checkouts/readthedocs.org/user_builds/code-tympan/checkouts/issue_647/Tympan/gui/tools/OGLMesh.h
• /home/docs/checkouts/readthedocs.org/user_builds/code-tympan/checkouts/issue_647/Tympan/gui/tools/OGLMesh.cpp
