Class which represents the Solver for 9613 family solvers. More...

#include <TYSolver.h>

Inheritance diagram for TYSolver:

[legend]

Collaboration diagram for TYSolver:

[legend]

Public Member Functions
	TYSolver ()
	Constructor. More...

virtual	~TYSolver ()
	Destructor. More...

void	init ()
	Initialize solver This method must be called after instantiation of a solver. More...

virtual bool	solve (const tympan::AcousticProblemModel &aproblem, tympan::AcousticResultModel &aresult, tympan::LPSolverConfiguration configuration)
	Launch the resolution and get the results. More...

const std::vector< TYStructSurfIntersect > &	getTabPolygon () const
	Get the array of polygons. More...

TYFaceSelector *	getFaceSelector ()
	Get the face selector. More...

TYAcousticPathFinder *	getAcousticPathFinder ()
	Get the acoustic path finder. More...

const Scene *	getScene () const
	Provide acces to the AcousticRaytracer' Scene. More...

void	selectFaces (std::deque< TYSIntersection > &tabIntersect, const OSegment3D &rayon, const string &sourceVolumeId)
	Delegate to _faceSelector the build of the array of intersections. More...

Public Member Functions inherited from SolverInterface
	SolverInterface ()

virtual	~SolverInterface ()

virtual void	purge ()

Protected Member Functions
std::unique_ptr< TYFaceSelector >	make_face_selector ()
	TYFaceSelector builder. More...

std::unique_ptr< TYAcousticPathFinder >	make_path_finder ()
	TYAcousticPathFinder builder. More...

Protected Attributes
std::unique_ptr< TYFaceSelector >	_faceSelector
	Pointer to the TYFaceSelector. More...

std::unique_ptr< TYAcousticPathFinder >	_acousticPathFinder
	Pointer to the TYAcousticPathFinder. More...

OThreadPool *	_pool

Private Member Functions
bool	buildCalcStruct (const tympan::AcousticProblemModel &aproblem)

bool	appendTriangleToScene ()
	Convertion des triangles Tympan en primitives utilisables par ray tracer. More...

virtual void	clearTabTrajets ()=0
	Clear the specific array of TYTrajet depending on the solver. More...

virtual void	addNewTaskForOneTrajetSrcRcp (const tympan::AcousticProblemModel &aproblem, unsigned int src_index, unsigned int rcp_index, int nbTrajetsForThisSource, int nNbTrajets)=0
	Instanciate a new task to compute a Trajet. More...

virtual void	buildAcousticModel ()=0
	Build the acoustic model. More...

virtual void	initAcousticModel ()=0
	Initialize the acoustic model. More...

virtual void	displayRaysInGUI (tab_acoustic_path &tabRays)=0
	Keep rays in tab in order to display them in GUI. More...

virtual void	buildResultsMatrix (int nSourceTrajetsNumber, tympan::SpectrumMatrix &matrix)=0
	Build the matrix of the results for a given source and all the receptors These results are the resulting spectrum of acoustic pressure in Pa at each receptor due to this source. More...

virtual void	deleteTrajets ()=0
	Delete all the Trajets. More...

Private Attributes
std::vector< TYStructSurfIntersect >	_tabPolygon
	Vector of TYStructSurfIntersect. More...

std::unique_ptr< Scene >	_scene
	Pointer to the Scene. More...

Detailed Description

Class which represents the Solver for 9613 family solvers.

Definition at line 35 of file TYSolver.h.

Constructor & Destructor Documentation

◆ TYSolver()

TYSolver::TYSolver ( )

Constructor.

Definition at line 27 of file TYSolver.cpp.

Here is the call graph for this function:

◆ ~TYSolver()

TYSolver::~TYSolver ( )

virtual

Destructor.

Definition at line 43 of file TYSolver.cpp.

Member Function Documentation

◆ addNewTaskForOneTrajetSrcRcp()

virtual void TYSolver::addNewTaskForOneTrajetSrcRcp	(	const tympan::AcousticProblemModel &	aproblem,
		unsigned int	src_index,
		unsigned int	rcp_index,
		int	nbTrajetsForThisSource,
		int	nNbTrajets
	)

privatepure virtual

Instanciate a new task to compute a Trajet.

Parameters

aproblem	The acoustic problem
src_index	Index of the source in the acoustic problem
rcp_index	Index of the receptor in the acoustic problem
nbTrajetsForThisSource	Number of routes already created for the considered source
nNbTrajets	Total number of routes already created

Implemented in TYSolverDefaultSolver, and TYSolver9613Solver.

Here is the caller graph for this function:

◆ appendTriangleToScene()

bool TYSolver::appendTriangleToScene ( )

private

Convertion des triangles Tympan en primitives utilisables par ray tracer.

Returns: Renvoie vrai si l'ensemble des primitives a bien pu etre importe dans la simulation.

Definition at line 195 of file TYSolver.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ buildAcousticModel()

virtual void TYSolver::buildAcousticModel ( )

privatepure virtual

Build the acoustic model.

Implemented in TYSolverDefaultSolver, and TYSolver9613Solver.

Here is the caller graph for this function:

◆ buildCalcStruct()

bool TYSolver::buildCalcStruct ( const tympan::AcousticProblemModel & aproblem )

private

Definition at line 164 of file TYSolver.cpp.

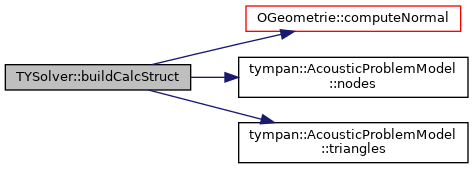

Here is the call graph for this function:

Here is the caller graph for this function:

◆ buildResultsMatrix()

virtual void TYSolver::buildResultsMatrix	(	int	nSourceTrajetsNumber,
		tympan::SpectrumMatrix &	matrix
	)

privatepure virtual

Build the matrix of the results for a given source and all the receptors These results are the resulting spectrum of acoustic pressure in Pa at each receptor due to this source.

Parameters

nSourceTrajetsNumber	The number of routes for a given source to all the receptors
matrix	The global contribution matrix

Implemented in TYSolverDefaultSolver, and TYSolver9613Solver.

Here is the caller graph for this function:

◆ clearTabTrajets()

void TYSolver::clearTabTrajets ( )

privatepure virtual

Clear the specific array of TYTrajet depending on the solver.

Implemented in TYSolverDefaultSolver, and TYSolver9613Solver.

Here is the caller graph for this function:

◆ deleteTrajets()

virtual void TYSolver::deleteTrajets ( )

privatepure virtual

Delete all the Trajets.

Implemented in TYSolverDefaultSolver, and TYSolver9613Solver.

Here is the caller graph for this function:

◆ displayRaysInGUI()

virtual void TYSolver::displayRaysInGUI ( tab_acoustic_path & tabRays )

privatepure virtual

Keep rays in tab in order to display them in GUI.

Parameters

tabRays The tab of rays

Implemented in TYSolverDefaultSolver, and TYSolver9613Solver.

Here is the caller graph for this function:

◆ getAcousticPathFinder()

TYAcousticPathFinder* TYSolver::getAcousticPathFinder ( )

inline

Get the acoustic path finder.

Definition at line 66 of file TYSolver.h.

Here is the caller graph for this function:

◆ getFaceSelector()

TYFaceSelector* TYSolver::getFaceSelector ( )

inline

Get the face selector.

Definition at line 62 of file TYSolver.h.

Here is the caller graph for this function:

◆ getScene()

const Scene* TYSolver::getScene ( ) const

inline

Provide acces to the AcousticRaytracer' Scene.

The Scene is set up by the main thread, but getScene() can be used safely by other threads, as soon as subsequent calls to AcousticRaytracer' features do not depend on AcousticRaytracerConfiguration. If the calls depend on AcousticRaytracerConfiguration, their results are undefined.

Definition at line 78 of file TYSolver.h.

Here is the caller graph for this function:

◆ getTabPolygon()

const std::vector<TYStructSurfIntersect>& TYSolver::getTabPolygon ( ) const

inline

Get the array of polygons.

Definition at line 57 of file TYSolver.h.

Here is the caller graph for this function:

◆ init()

void TYSolver::init ( )

Initialize solver This method must be called after instantiation of a solver.

Definition at line 52 of file TYSolver.cpp.

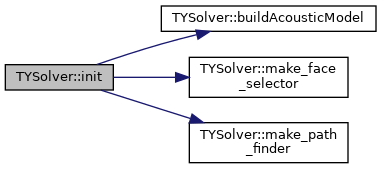

Here is the call graph for this function:

Here is the caller graph for this function:

◆ initAcousticModel()

virtual void TYSolver::initAcousticModel ( )

privatepure virtual

Initialize the acoustic model.

Implemented in TYSolverDefaultSolver, and TYSolver9613Solver.

Here is the caller graph for this function:

◆ make_face_selector()

std::unique_ptr< TYFaceSelector > TYSolver::make_face_selector ( )

protected

TYFaceSelector builder.

Definition at line 154 of file TYSolver.cpp.

Here is the caller graph for this function:

◆ make_path_finder()

std::unique_ptr< TYAcousticPathFinder > TYSolver::make_path_finder ( )

protected

TYAcousticPathFinder builder.

Definition at line 159 of file TYSolver.cpp.

Here is the caller graph for this function:

◆ selectFaces()

void TYSolver::selectFaces	(	std::deque< TYSIntersection > &	tabIntersect,
		const OSegment3D &	rayon,
		const string &	sourceVolumeId
	)

Delegate to _faceSelector the build of the array of intersections.

Parameters

tabIntersect	Array of intersections
rayon	Ray path
sourceVolumeId	volume_id of source when first ray point is a source

Definition at line 148 of file TYSolver.cpp.

Here is the call graph for this function:

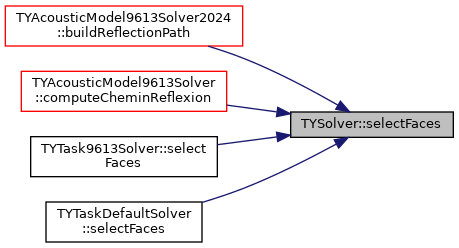

Here is the caller graph for this function:

◆ solve()

bool TYSolver::solve	(	const tympan::AcousticProblemModel &	aproblem,
		tympan::AcousticResultModel &	aresult,
		tympan::LPSolverConfiguration	configuration
	)

virtual

Launch the resolution and get the results.

Parameters

aproblem	Acoustic problem
aresult	Results
configuration	Solver configuration

Returns: Always true

Implements SolverInterface.

Definition at line 70 of file TYSolver.cpp.

Here is the call graph for this function:

Member Data Documentation

◆ _acousticPathFinder

std::unique_ptr<TYAcousticPathFinder> TYSolver::_acousticPathFinder

protected

Pointer to the TYAcousticPathFinder.

Definition at line 97 of file TYSolver.h.

◆ _faceSelector

std::unique_ptr<TYFaceSelector> TYSolver::_faceSelector

protected

Pointer to the TYFaceSelector.

Definition at line 96 of file TYSolver.h.

◆ _pool

OThreadPool* TYSolver::_pool

protected

Definition at line 158 of file TYSolver.h.

◆ _scene

std::unique_ptr<Scene> TYSolver::_scene

private

Pointer to the Scene.

Definition at line 161 of file TYSolver.h.

◆ _tabPolygon

std::vector<TYStructSurfIntersect> TYSolver::_tabPolygon

private

Vector of TYStructSurfIntersect.

Definition at line 156 of file TYSolver.h.

The documentation for this class was generated from the following files:

/home/docs/checkouts/readthedocs.org/user_builds/code-tympan/checkouts/issue_1033/Tympan/solvers/9613/TYSolver.h
/home/docs/checkouts/readthedocs.org/user_builds/code-tympan/checkouts/issue_1033/Tympan/solvers/9613/TYSolver.cpp
