Reflection path finder relying on ray-tracing using the AcousticRaytracer module. More...

#include <TYReflectionPathFinder.h>

Inheritance diagram for TYReflectionPathFinderART:

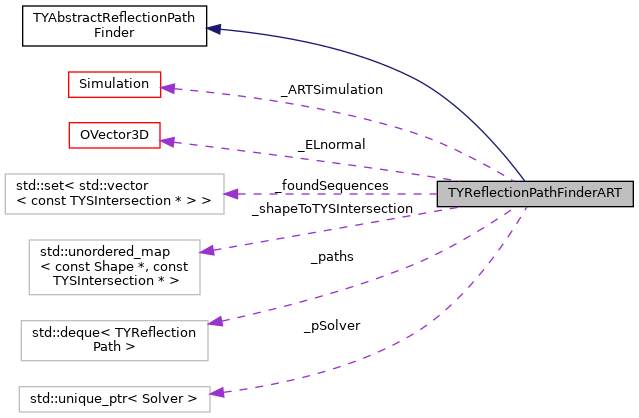

Collaboration diagram for TYReflectionPathFinderART:

[legend]

Public Member Functions
	TYReflectionPathFinderART (unsigned int nbRays)

std::unique_ptr< TYAbstractReflectionPathFinder >	instanciate () const override
	Instanciate a new TYReflectionPathFinderART. The configuration of the former path finder (number of rays, ...) is transfered to the new instance. More...

bool	setup (size_t maxOrder, const std::deque< TYSIntersection > &tabIntersect, const OPoint3D &source, const OPoint3D &receptor) override
	Set the scene to be treated by the path finder. More...

bool	remainingPaths () const override
	Tell if some paths remain in the set of remaining paths. More...

TYReflectionPath	popPath () override
	Give the last computed reflection path, and remove it from the set of remaining paths. More...

Public Member Functions inherited from TYAbstractReflectionPathFinder
virtual	~TYAbstractReflectionPathFinder ()=default

Protected Member Functions
	TYReflectionPathFinderART ()=default

void	setupConfiguration (size_t maxOrder)
	Setup ART' Simulation configuration. More...

bool	setupScene (const std::deque< TYSIntersection > &tabIntersect, const OPoint3D &sourcePoint, const OPoint3D &receptorPoint)
	Build an AcousticRaytracer scene containing one source, one receptor, and a collection of faces. The faces are built from intersecting segments in EL-plane. Each segment is extruded along normal direction of EL-plane towards up and down directions of a certain length, to avoid singularities (ray-border of faces intersections) during ray tracing. More...

void	setupAcceleratingDataStructure ()
	Setup accelerating data-structure using ART' Simulation configuration. More...

void	setupSolver ()
	Setup ART' simulation solver. More...

void	computeRaytracing ()
	Perform raytracing simulation. More...

void	buildReflectionPaths (const OPoint3D &source, const OPoint3D &receptor)
	Build reflection paths from valid rays found by the solver. For each sequence of reflecting barriers, only one path is built. More...

bool	processIntersectingSegment (const TYSIntersection &inter)
	Process an intersecting segment in EL-plane to add equivalent faces in the AcousticRaytracer' simulation scene. Intersecting segments which do not belong to EL-plane are ignored. More...

bool	processInfraIntersectingSegment (const TYSIntersection &inter)
	Process an infrastructure intersecting segment in EL-plane to add equivalent faces in the AcousticRaytracer' simulation scene. More...

bool	processTopoIntersectingSegment (const TYSIntersection &inter)
	Process a topography intersecting segment in EL-plane to add equivalent faces in the AcousticRaytracer' simulation scene. More...

void	buildQuadranglePointsFromInter (const TYSIntersection &inter, OPoint3D &p1Top, OPoint3D &p1Bottom, OPoint3D &p2Top, OPoint3D &p2Bottom) const
	Compute points forming a quadrangle from an intersecting segment in EL-plane. Points are obtained by adding or substracting _extrusionLength along the normal direction of EL-plane to points forming the segment. More...

void	addOrientedQuadrangle (const OPoint3D &p1Top, const OPoint3D &p1Bottom, const OPoint3D &p2Top, const OPoint3D &p2Bottom, const OVector3D vExt, const TYSIntersection &sourceInter)
	Add an oriented quadrangle to the AcousticRaytracer' simulation scene. The quadrangle is oriented using a vector pointing towards the exterior of the quadrangle. The address of the intersecting segment from which come the quadrangle is used to map the added quadrangle to the intersecting segment. More...

Shape *	addOrientedTriangle (const OPoint3D &p1, const OPoint3D &p2, const OPoint3D &p3, const OVector3D &vExt)
	Add an oriented triangle to the AcousticRaytracer' simulation scene. The vertices (v1 = p1, v2 = p2 or p3, v3 = p2 or p3) are set such that the normal of the triangle (v2-v1) x (v3-v1) is oriented the same than vExt. More...

OVector3D	computeELPlaneNormal (const OPoint3D &source, const OPoint3D &receptor)
	Compute a normal vector of the EL-plane Hypothesis: source and receptor are not aligned along a vertical line. More...

bool	isPathValid (const TYReflectionPath &path)
	Check if a path is valid. In plus of validation performed during raytracing, it has to be verified: More...

bool	isPathAlreadyFound (const TYReflectionPath &path) const
	Check if a path has already been found. More...

bool	isLastSegmentIntersectingSceneElement (const TYReflectionPath &path)
	Check if the last segment of a path intersects a scene element. More...

Protected Member Functions inherited from TYAbstractReflectionPathFinder
	TYAbstractReflectionPathFinder ()=default

Private Member Functions
void	computeRadiusFromDistanceSR (const OPoint3D &sourcePoint, const OPoint3D &rcptPoint)
	Compute receiver radius from source and receiver points. More...

	FRIEND_TEST (test_ReflectionPathFinderART, computeELPlaneNormal_horizontalPlane1)

	FRIEND_TEST (test_ReflectionPathFinderART, computeELPlaneNormal_horizontalPlane2)

	FRIEND_TEST (test_ReflectionPathFinderART, computeELPlaneNormal_nonHorizontalPlane)

Private Attributes
Simulation	_ARTSimulation

std::unique_ptr< Solver >	_pSolver

std::set< std::vector< const TYSIntersection * > >	_foundSequences

std::deque< TYReflectionPath >	_paths

std::unordered_map< const Shape , const TYSIntersection >	_shapeToTYSIntersection

unsigned int	_nbRays

double	_rcptRadius

double	_extrusionLength

OVector3D	_ELnormal

Detailed Description

Reflection path finder relying on ray-tracing using the AcousticRaytracer module.

Definition at line 83 of file TYReflectionPathFinder.h.

Constructor & Destructor Documentation

◆ TYReflectionPathFinderART() [1/2]

TYReflectionPathFinderART::TYReflectionPathFinderART ( unsigned int nbRays )

Constructor

Parameters

nbRays number of rays to spawn from the source

Definition at line 19 of file TYReflectionPathFinder.cpp.

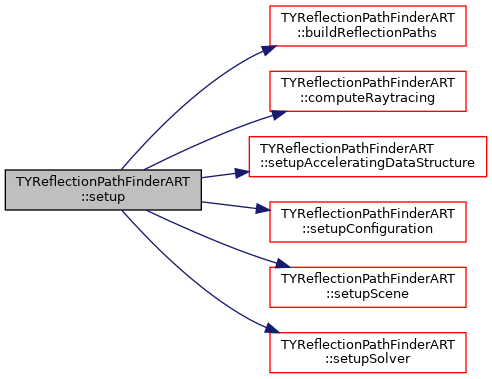

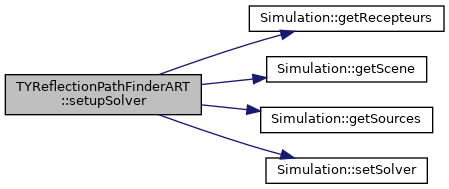

Here is the call graph for this function:

◆ TYReflectionPathFinderART() [2/2]

TYReflectionPathFinderART::TYReflectionPathFinderART ( )

protecteddefault

Member Function Documentation

◆ addOrientedQuadrangle()

void TYReflectionPathFinderART::addOrientedQuadrangle	(	const OPoint3D &	p1Top,
		const OPoint3D &	p1Bottom,
		const OPoint3D &	p2Top,
		const OPoint3D &	p2Bottom,
		const OVector3D	vExt,
		const TYSIntersection &	sourceInter
	)

protected

Add an oriented quadrangle to the AcousticRaytracer' simulation scene. The quadrangle is oriented using a vector pointing towards the exterior of the quadrangle. The address of the intersecting segment from which come the quadrangle is used to map the added quadrangle to the intersecting segment.

p1Top p2Top +---------—+ | | | | +---------—+ p1Bottom p2Bottom

Parameters

p1Top
p1Bottom
p2Top
p2Bottom
vExt	vector defining the exterior direction of the quadrangle
sourceInter	intersecting segment from which come the quadrangle

Definition at line 274 of file TYReflectionPathFinder.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ addOrientedTriangle()

Shape * TYReflectionPathFinderART::addOrientedTriangle	(	const OPoint3D &	p1,
		const OPoint3D &	p2,
		const OPoint3D &	p3,
		const OVector3D &	vExt
	)

protected

Add an oriented triangle to the AcousticRaytracer' simulation scene. The vertices (v1 = p1, v2 = p2 or p3, v3 = p2 or p3) are set such that the normal of the triangle (v2-v1) x (v3-v1) is oriented the same than vExt.

Parameters

p1	first point
p2	second point
p3	third point
vExt	vector defining the exterior direction of the triangle

Returns: address of the added triangle

Definition at line 285 of file TYReflectionPathFinder.cpp.

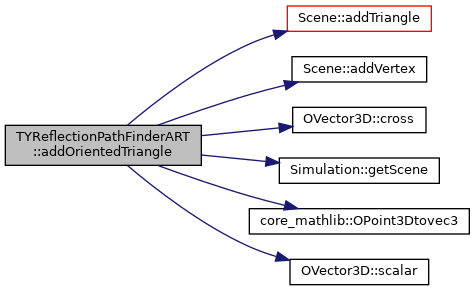

Here is the call graph for this function:

Here is the caller graph for this function:

◆ buildQuadranglePointsFromInter()

void TYReflectionPathFinderART::buildQuadranglePointsFromInter	(	const TYSIntersection &	inter,
		OPoint3D &	p1Top,
		OPoint3D &	p1Bottom,
		OPoint3D &	p2Top,
		OPoint3D &	p2Bottom
	)		const

protected

Compute points forming a quadrangle from an intersecting segment in EL-plane. Points are obtained by adding or substracting _extrusionLength along the normal direction of EL-plane to points forming the segment.

Parameters

inter	[in] intersecting segment from which creating the quadrangle
p1Top	[out] point created above the first segment point
p1Bottom	[out] point created below the first segment point
p2Top	[out] point created above the second segment point
p2Bottom	[out] point created below the second segment point

Definition at line 259 of file TYReflectionPathFinder.cpp.

Here is the caller graph for this function:

◆ buildReflectionPaths()

void TYReflectionPathFinderART::buildReflectionPaths	(	const OPoint3D &	source,
		const OPoint3D &	receptor
	)

protected

Build reflection paths from valid rays found by the solver. For each sequence of reflecting barriers, only one path is built.

Parameters

source	source point
receptor	receptor point

Definition at line 158 of file TYReflectionPathFinder.cpp.

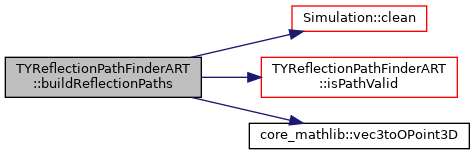

Here is the call graph for this function:

Here is the caller graph for this function:

◆ computeELPlaneNormal()

OVector3D TYReflectionPathFinderART::computeELPlaneNormal	(	const OPoint3D &	source,
		const OPoint3D &	receptor
	)

protected

Compute a normal vector of the EL-plane Hypothesis: source and receptor are not aligned along a vertical line.

Parameters

source	source point
receptor	receptor point

Returns: normal of EL-plane, normalized

Definition at line 313 of file TYReflectionPathFinder.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ computeRadiusFromDistanceSR()

void TYReflectionPathFinderART::computeRadiusFromDistanceSR	(	const OPoint3D &	sourcePoint,
		const OPoint3D &	rcptPoint
	)

private

Compute receiver radius from source and receiver points.

Parameters

sourcePoint	Source point
rcptPoint	Receptor point

Definition at line 62 of file TYReflectionPathFinder.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ computeRaytracing()

void TYReflectionPathFinderART::computeRaytracing ( )

protected

Perform raytracing simulation.

Definition at line 153 of file TYReflectionPathFinder.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ FRIEND_TEST() [1/3]

TYReflectionPathFinderART::FRIEND_TEST	(	test_ReflectionPathFinderART	,
		computeELPlaneNormal_horizontalPlane1
	)

private

◆ FRIEND_TEST() [2/3]

TYReflectionPathFinderART::FRIEND_TEST	(	test_ReflectionPathFinderART	,
		computeELPlaneNormal_horizontalPlane2
	)

private

◆ FRIEND_TEST() [3/3]

TYReflectionPathFinderART::FRIEND_TEST	(	test_ReflectionPathFinderART	,
		computeELPlaneNormal_nonHorizontalPlane
	)

private

◆ instanciate()

std::unique_ptr< TYAbstractReflectionPathFinder > TYReflectionPathFinderART::instanciate ( ) const

overridevirtual

Instanciate a new TYReflectionPathFinderART. The configuration of the former path finder (number of rays, ...) is transfered to the new instance.

Implements TYAbstractReflectionPathFinder.

Definition at line 36 of file TYReflectionPathFinder.cpp.

◆ isLastSegmentIntersectingSceneElement()

bool TYReflectionPathFinderART::isLastSegmentIntersectingSceneElement ( const TYReflectionPath & path )

protected

Check if the last segment of a path intersects a scene element.

Parameters

path	the path to check

Returns: true if the last segment of the path intersects a scene element

Definition at line 341 of file TYReflectionPathFinder.cpp.

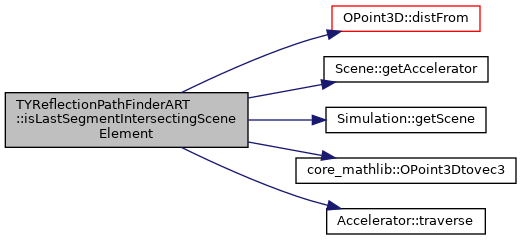

Here is the call graph for this function:

Here is the caller graph for this function:

◆ isPathAlreadyFound()

bool TYReflectionPathFinderART::isPathAlreadyFound ( const TYReflectionPath & path ) const

protected

Check if a path has already been found.

Parameters

path	the path to check

Returns: true if the sequence of intersecting barriers of the path is the same than another path in _paths

Definition at line 336 of file TYReflectionPathFinder.cpp.

Here is the caller graph for this function:

◆ isPathValid()

bool TYReflectionPathFinderART::isPathValid ( const TYReflectionPath & path )

protected

Check if a path is valid. In plus of validation performed during raytracing, it has to be verified:

If the sequence of reflecting segments is new
If the last step (last reflection point to receptor) does not intersect any scene element

Parameters

path	the path to check

Returns: true if the path is valid

Definition at line 323 of file TYReflectionPathFinder.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ popPath()

TYReflectionPath TYReflectionPathFinderART::popPath ( )

overridevirtual

Give the last computed reflection path, and remove it from the set of remaining paths.

Returns: a reflection path

Implements TYAbstractReflectionPathFinder.

Definition at line 68 of file TYReflectionPathFinder.cpp.

◆ processInfraIntersectingSegment()

bool TYReflectionPathFinderART::processInfraIntersectingSegment ( const TYSIntersection & inter )

protected

Process an infrastructure intersecting segment in EL-plane to add equivalent faces in the AcousticRaytracer' simulation scene.

The triangles forming the face are oriented so that the normal of the triangles point towards the same direction than the normal of the face whose cut produced the intersecting segment. This way, it is guaranteed that any intersection between a ray spawned outdoor and one of the triangles forming the face are found.

          +    ^
         /|   /  normal of the face from which the intersecting segment comes

+ | / —> ||-> normal of the triangles added

| + |/

Parameters

inter intersecting segment used to form the face

Returns
true if the quadrangle has been successfully added to the AcousticRaytracer' simulation scene

Definition at line 219 of file TYReflectionPathFinder.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ processIntersectingSegment()

bool TYReflectionPathFinderART::processIntersectingSegment ( const TYSIntersection & inter )

protected

Process an intersecting segment in EL-plane to add equivalent faces in the AcousticRaytracer' simulation scene. Intersecting segments which do not belong to EL-plane are ignored.

Parameters

inter intersecting segment to process

Returns: true if the intersecting segment has been correctly processed

Definition at line 198 of file TYReflectionPathFinder.cpp.

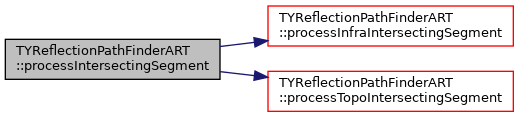

Here is the call graph for this function:

Here is the caller graph for this function:

◆ processTopoIntersectingSegment()

bool TYReflectionPathFinderART::processTopoIntersectingSegment ( const TYSIntersection & inter )

protected

Process a topography intersecting segment in EL-plane to add equivalent faces in the AcousticRaytracer' simulation scene.

The normal of the topography element whose cut produced the intersecting segment is not known by the intersecting segment. In order to guaranty that any intersection between a ray spawned outdoor and one of the triangles forming the face will be found:

a normal of the intersecting segment in EL-plane is built (whatever its direction) to define an exterior direction
two faces distanced of an infinitesimal distance are built one faced to the other

these faces are oriented so that they cannot "see the other" in their normal direction

                                         epsilon
                                          <--->
                                          +   +
                                         /|  /|     ---> one possible normal in EL-plane

+ | + | / —> normal of the triangles added <-|| ||-> normal of the triangles added

| + | + |/ |/
- +

Parameters

inter intersecting segment used to form the face

Returns: true if the quadrangles have been successfully added to the AcousticRaytracer' simulation scene

Definition at line 235 of file TYReflectionPathFinder.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ remainingPaths()

bool TYReflectionPathFinderART::remainingPaths ( ) const

overridevirtual

Tell if some paths remain in the set of remaining paths.

Returns: true if at least one path can be obtained from popPath

Implements TYAbstractReflectionPathFinder.

Definition at line 57 of file TYReflectionPathFinder.cpp.

◆ setup()

bool TYReflectionPathFinderART::setup	(	size_t	maxOrder,
		const std::deque< TYSIntersection > &	tabIntersect,
		const OPoint3D &	source,
		const OPoint3D &	receptor
	)

overridevirtual

Set the scene to be treated by the path finder.

Parameters

maxOrder	maximum order of the reflection paths to find
tabIntersect	set of intersecting segments of the scene
source	source point from which reflection paths must start
receptor	receptor point to which reflection paths must end

Returns: true if setup succeeded

Implements TYAbstractReflectionPathFinder.

Definition at line 41 of file TYReflectionPathFinder.cpp.

Here is the call graph for this function:

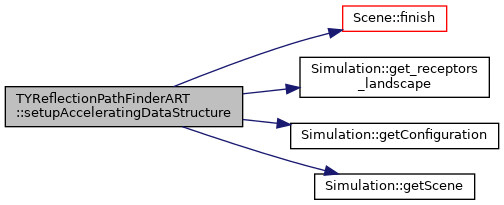

◆ setupAcceleratingDataStructure()

void TYReflectionPathFinderART::setupAcceleratingDataStructure ( )

protected

Setup accelerating data-structure using ART' Simulation configuration.

Definition at line 127 of file TYReflectionPathFinder.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ setupConfiguration()

void TYReflectionPathFinderART::setupConfiguration ( size_t maxOrder )

protected

Setup ART' Simulation configuration.

Definition at line 82 of file TYReflectionPathFinder.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

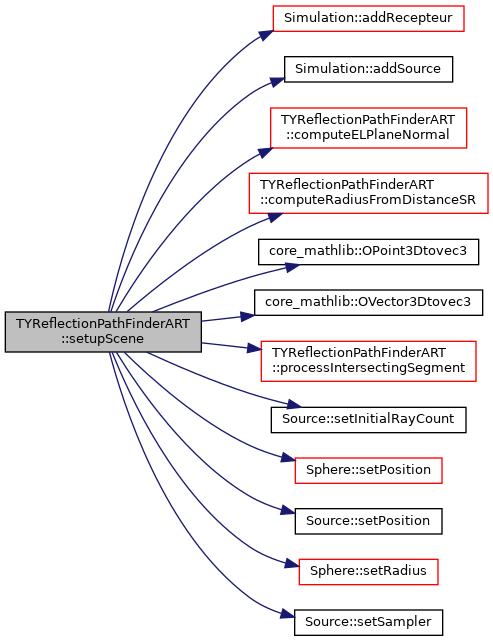

◆ setupScene()

bool TYReflectionPathFinderART::setupScene	(	const std::deque< TYSIntersection > &	tabIntersect,
		const OPoint3D &	sourcePoint,
		const OPoint3D &	receptorPoint
	)

protected

Build an AcousticRaytracer scene containing one source, one receptor, and a collection of faces. The faces are built from intersecting segments in EL-plane. Each segment is extruded along normal direction of EL-plane towards up and down directions of a certain length, to avoid singularities (ray-border of faces intersections) during ray tracing.

Rays are sampled uniformly in EL-plane, the number of rays being controlled by _nbRays. The receptor is modelled as a sphere, controlled by _rcptRadius.

Parameters

tabIntersect	set of intersecting segments of the scene
sourcePoint	location of the source
receptorPoint	location of the receptor

Returns: true if the faces have successfully been built

Definition at line 88 of file TYReflectionPathFinder.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ setupSolver()

void TYReflectionPathFinderART::setupSolver ( )

protected

Setup ART' simulation solver.

Definition at line 142 of file TYReflectionPathFinder.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

Member Data Documentation

◆ _ARTSimulation

Simulation TYReflectionPathFinderART::_ARTSimulation

private

Definition at line 313 of file TYReflectionPathFinder.h.

◆ _ELnormal

OVector3D TYReflectionPathFinderART::_ELnormal

private

Definition at line 321 of file TYReflectionPathFinder.h.

◆ _extrusionLength

double TYReflectionPathFinderART::_extrusionLength

private

Definition at line 320 of file TYReflectionPathFinder.h.

◆ _foundSequences

std::set<std::vector<const TYSIntersection*> > TYReflectionPathFinderART::_foundSequences

private

Definition at line 315 of file TYReflectionPathFinder.h.

◆ _nbRays

unsigned int TYReflectionPathFinderART::_nbRays

private

Definition at line 318 of file TYReflectionPathFinder.h.

◆ _paths

std::deque<TYReflectionPath> TYReflectionPathFinderART::_paths

private

Definition at line 316 of file TYReflectionPathFinder.h.

◆ _pSolver

std::unique_ptr<Solver> TYReflectionPathFinderART::_pSolver

private

Definition at line 314 of file TYReflectionPathFinder.h.

◆ _rcptRadius

double TYReflectionPathFinderART::_rcptRadius

private

Definition at line 319 of file TYReflectionPathFinder.h.

◆ _shapeToTYSIntersection

std::unordered_map<const Shape*, const TYSIntersection*> TYReflectionPathFinderART::_shapeToTYSIntersection

private

Definition at line 317 of file TYReflectionPathFinder.h.

The documentation for this class was generated from the following files:

/home/docs/checkouts/readthedocs.org/user_builds/code-tympan/checkouts/issue_1033/Tympan/solvers/9613/9613Solver2024/TYReflectionPathFinder.h
/home/docs/checkouts/readthedocs.org/user_builds/code-tympan/checkouts/issue_1033/Tympan/solvers/9613/9613Solver2024/TYReflectionPathFinder.cpp

Public Member Functions

Protected Member Functions

Private Member Functions

Private Attributes

Detailed Description

Constructor & Destructor Documentation

◆ TYReflectionPathFinderART() [1/2]

◆ TYReflectionPathFinderART() [2/2]

Member Function Documentation

◆ addOrientedQuadrangle()

◆ addOrientedTriangle()

◆ buildQuadranglePointsFromInter()

◆ buildReflectionPaths()

◆ computeELPlaneNormal()

◆ computeRadiusFromDistanceSR()

◆ computeRaytracing()

◆ FRIEND_TEST() [1/3]

◆ FRIEND_TEST() [2/3]

◆ FRIEND_TEST() [3/3]

◆ instanciate()

◆ isLastSegmentIntersectingSceneElement()

◆ isPathAlreadyFound()

◆ isPathValid()

◆ popPath()

◆ processInfraIntersectingSegment()

◆ processIntersectingSegment()

◆ processTopoIntersectingSegment()

◆ remainingPaths()

◆ setup()

◆ setupAcceleratingDataStructure()

◆ setupConfiguration()

◆ setupScene()

◆ setupSolver()

Member Data Documentation

◆ _ARTSimulation

◆ _ELnormal

◆ _extrusionLength

◆ _foundSequences

◆ _nbRays

◆ _paths

◆ _pSolver

◆ _rcptRadius

◆ _shapeToTYSIntersection
